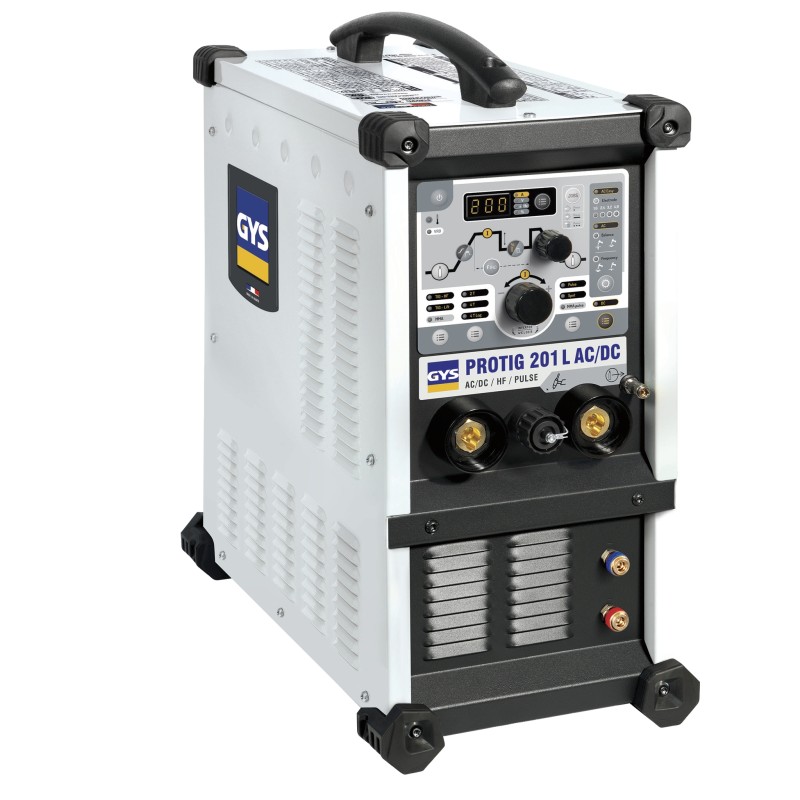

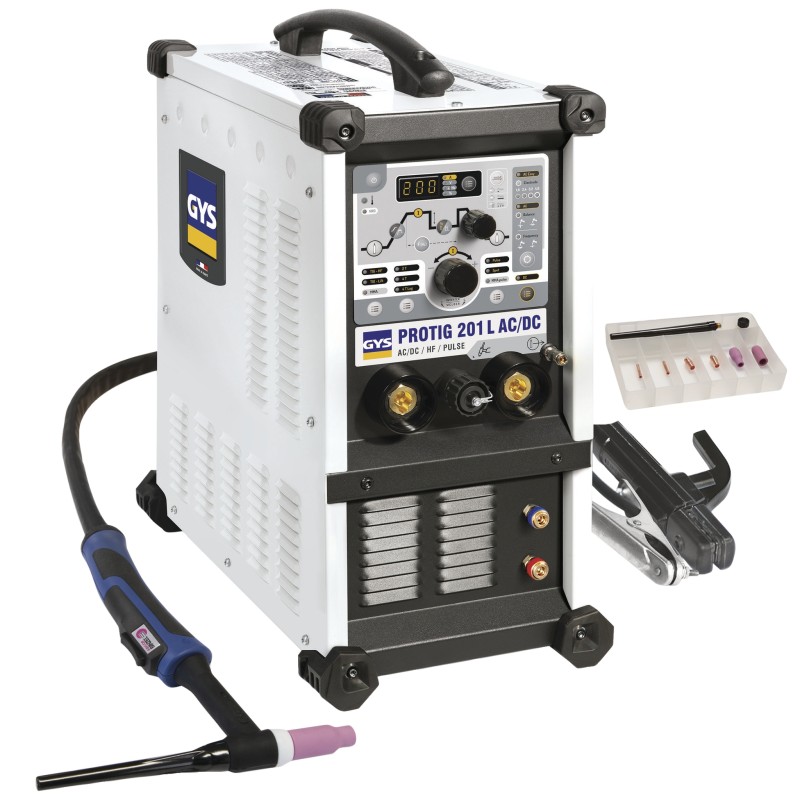

GYS - PROTIG 201L AC/DC HF PFC welding machine with accessories

Robust, the PROTIG 200 DC HF delivers high-quality welds on mild and stainless steels (TIG and MMA).
Designed for pipe fitters, boilermakers and maintenance departments, it features an intuitive interface allowing easy parameter adjustment.

Main features of this machine

1) in TIG mode.

TIG DC: DC welding for ferrous materials.
TIG DC Pulsed: limits heat build-up in the workpieces.
SPOT: fast and precise tacking before welding thin sheet metal.
2 ignition types: HF contactless or LIFT by contact for electrically sensitive environments.
3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with lamella and double-button torches.
AIP (Adjust Ideal Position): assists with torch positioning before welding (4T & 4T LOG modes)

2) in MMA welding (coated electrodes)

MMA: basic and rutile electrodes (up to Ø 5 mm).
MMA Pulse: developed for welding pipes/pipelines as well as for vertical upward welding positions.

Delivered with:
A TIG torch type 26, length 4 m
An electrode holder and a ground clamp: cable length 2 m - section 25 mm²

This ESAB Renegade ET 210iP is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with IP23 protection rating, capable of being used even in the most demanding environments.

Thanks to its light weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210iP is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or if an extension lead is used (length up to 100 m).

Easy to use. It provides direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It allows MMA welding of rutile, basic, stainless steel, cast iron electrodes... and also cellulosic ones.

Technical specifications:

- High robustness with IP23 protection rating, for use in workshops and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra-long power supply cable, up to 100 m

- Intuitive panel, quick to configure, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general fabrication
Mining
Steel formwork

Supplied with:
1 earth clamp + 25 mm² cable length 3 m - 13 mm connector
1 strap for carrying the machine on the shoulder when working at height + anchor points for lifting.
1 TIG torch SR-B 26 length 4 m
1 gas hose length 4 m

Electrode holder optional

Ultra-compact and designed for craftsmen, the PROTIG 161 DC HF (160 A) delivers high-quality welds on mild and stainless steels thanks to its advanced secondary regulation. Its intuitive interface makes parameter adjustment straightforward.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
TG DC: ensures quality welding on all ferrous materials such as steel, stainless steel, but also copper and its alloys…
TIG DC Pulsed: controls the temperature of the weld pool, limits distortion and thus allows the joining of thin sheets from 0.3 mm.
SPOT: fast and precise tacking before welding thin sheets.
2 ignition types: HF non-contact or LIFT contact for electrosensitive environments.
3 trigger modes: 2T, 4T and 4T LOG.
Automatic torch detection: compatible with blade and double-button torches

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm)
Pulsed MMA: facilitates upward vertical position welding (pipes/pipeline…)
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable in seconds depending on the metal type
- Arc Force: temporary current increase in difficult welding situations.

INTUITIVE
Current and voltage display during and after welding (WPS/WPQR).
Memorisation of 10 programs per process for perfect reproducibility of your welds.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

→ Supplied with:
1 TIG torch SR17 DB - 4 m, + accessories *
1 electrode holder and earth clamp with 25 mm² section cable, length 2 m.

* 1 electrode holder Ø 1.6 and 2.4 mm
1 diffuser for electrode Ø 1.6 and 2.4 mm
1 ceramic nozzle GR7 and GR5
1 long cap and 1 short cap

The PROTIG 201 AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision in many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, as well as copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits deformation and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tack welding

TIG AC Easy: Simplifies the use of the welding unit thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures preliminary cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tack welding.

2 stick electrode welding modes

MMA Standard: Accepts basic, rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical up-position welding (pipe fittings/pipeline...).

User assistance for the welder

2 arc ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T "LOG": the operator can switch between 2 welding currents at any time with a brief pulse on the trigger (hot current and cold current)

MMA welding assistance: - Anti-sticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc striking and can be adjusted according to the type of metal
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Memory for up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of compliance with WPS/WPQR)
• Reinforced casing and anti-shock pads

Unit delivered without accessories

This inverter technology unit makes electrode welding easier thanks to direct current and its low power consumption
(230V-16A power supply).

It has an adjustment range of 10 to 170 A.
The digital amperage display allows you to be more precise in your work.

TIG welding allows you to weld thin thicknesses that you could not achieve with an electrode in MMA mode.

Welding possible on steel, stainless steel, copper, nickel... from 0.5 mm thickness.

TIG welding mode requires the use of a shielding gas during the welding operation (pure Argon).

Arc striking is achieved by touching the tip of the tungsten electrode to the metal workpiece and lifting it slightly to create the welding arc (TIG-LIFT striking method).

It features protection (+/- 15% variation) against electrical overloads, allowing it to be powered by a generator. However, the generator must supply a stabilized current.

Equipped with the following systems:
HOT START to facilitate arc striking, ANTI-STICKING which eliminates the problem of the electrode sticking to the workpiece, and ARC FORCE which increases the arc power when the welding arc is kept short.
VRD: This device reduces the voltage when the welding unit is switched on but not in welding mode; it thus ensures the welder's safety should they accidentally touch the electrode.

Supplied in a carry case with:

1 TIG torch 110 A with valve, gas opening valve on the torch; length 4 m.
This torch is fitted with a ceramic nozzle and a tungsten electrode Ø 1.6 mm.
1 flow meter for refillable gas cylinder.
1 MMA electrode holder allowing the use of rutile or basic electrode rods from Ø 1.6 to 4 mm, cable length 3 m.
1 earth clamp + cable length 3 m.

TIG AC/DC inverter welding machine (HF or LIFT), PULSED TIG (PULSE and EASY PULSE) and MMA.
Compatible with various types of materials such as steel, stainless steel, aluminum, titanium, copper, nickel, magnesium and their alloys.
Designed to guarantee excellent results on any thickness, even the finest, the PULSE mode (including the simplified EASY PULSE version) reduces material distortion by ensuring high arc stability.
Advanced functions: MIX AC-DC for preparing AC welding of large-mass workpieces; THINSPOT for spot welding of very thin sheet metal.
The CL screen facilitates interaction with the product and simplifies the adjustment of multiple TIG welding curve parameters depending on the job.
Ability to save and recall custom programs.
Electrode welding in both continuous and pulsed mode (MMA Pulse), guaranteeing excellent results with basic electrodes and in positional welding.
Designed to guarantee long-term reliability, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Specifications:
TIG

• pulsed and EASY pulsed operation; in 2/4 stroke, Bi Level;
• 10 customizable welding programs;
• adjustment of multiple welding curve parameters: electrode pre-heating, initial/final current, spot welding time, pre/post gas, initial/final current ramp, DC/AC balance, square wave frequency;
• Advanced functions: THINSPOT for spot welding of very thin sheet metal; MIX AC-DC for heating the workpiece and preparing it for AC welding;
• start (HF/LIFT) at optimized minimum current;
• pre-equipped for remote control;
• compatibility with PRO torches;

MMA

• operation in continuous and pulsed current (MMA PULSE);
• hot start, arc force settings;
• anti-stick protection;
• VRD device;

Other specifications:

• CL screen for simplified interaction, immediate display and configuration of parameters;
• long-term reliability thanks to the dedicated air tunnel cooling system that protects against dust and dirt;
• ensures best performance even in the presence of undervoltages (up to -25%) and overvoltages (+15%);
• compact structure for easier transport and space saving;
• thermostatic, overvoltage, undervoltage, internal dirt, overcurrent, phase loss protections.

Supplied with TIG welding accessories.
1 TIG torch ST 26, length 4 m.
1 regulator with 2 pressure gauges for refillable cylinder.
1 ground clamp + 25 mm² cable, length 3 m
1 gas hose, length 2 m

This unit enables welding with tungsten electrodes (TIG welding) on steel, stainless steel, copper, nickel ...including aluminium .

It also allows continuous or Pulsed mode welding with rutile or basic electrodes (MMA welding kit optional).

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency contactless arc starting

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tack welding of parts before final welding.

HOT START adjustable: additional striking power in case of a difficult-to-strike electrode.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing the penetration and mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overload and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS
( automatically adjusted by the microprocessor based on the current intensity and welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function, particularly suited for welding thin sheets where low heat input to the workpiece is required and adapted for welding in all positions.
When the pulse frequency increases, arc stability increases and therefore welding precision as well.
It also features the EASY PULSE system, allowing immediate pulsed mode welding even if the welder is not experienced in TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

For connecting the unit to the gas cylinder, it is recommended to use fitting 804208, which is positioned at the rear of the welding unit.

The Minarc TIG 200 EVO features high-frequency arc ignition, ensuring reliable performance across a wide variety of welding tasks.
Ideal for light construction, installation, repair and maintenance applications.

This unit features an LED display.
Precise arc ignition from 5A.
Duty cycle: 200 A @ 35%.
Pre-gas and post-gas adjustment
Compatible with generator use.

It is supplied with:
1 type 26 torch reference Kemppi TX 225, 8 m long - leather sleeve finish. Supplied with a GR6 gas nozzle, an electrode holder + gas diffuser and a grey cerium tungsten electrode Ø 2.4 mm
1 ground clamp + 25 mm² cable, 5 m long

This ESAB Renegade ET 210Ip Advanced is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with protection rating IP23, capable of being used even in the most demanding environments.

Thanks to its light weight, the various lifting points on the outer casing and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be easily transported.

Renegade ET 210Ip Advanced is equipped with an integrated active PFC circuit that allows it to be used even on a low-power supply or when an extension lead is used (length up to 100 m).

Easy to use. It offers direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It enables MMA welding of rutile, basic, stainless steel, cast iron... and also cellulosic electrodes.

Technical specifications:

- High robustness with IP23 protection rating, for use in workshops and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra-long power cable, up to 100 m

- Intuitive panel, quick to configure, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels in order to control
heat input and weld pool size

- 4.3-inch colour screen with visual display of settings

- Easy access to up to 10 personal programs via the torch button

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general manufacturing
Mining
Steel formwork

Delivered with:
1 EC 1001 cooling unit
1 earth clamp + 25 mm² cable 3 m long - 13 mm connector
1 strap for shoulder carrying of the unit when working at height + anchor points for lifting.
1 TIG torch Exeor SR 21, 4 m long
1 gas hose 4 m long

Electrode holder optional

This machine allows welding with tungsten electrodes (TIG welding) on steel, stainless steel, cast iron, copper, nickel, and titanium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A trigger TIG torch 4 m in length + ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency NO-CONTACT arc starting

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional starting power when an electrode is difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overload and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

(automatically adjusted by the microprocessor according to the current intensity and welding duration.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input to the welded workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision also improves.

THINSPOT function, enabling fast and precise spot welding.

For connecting the machine to gas, it is recommended to use fitting 804208.

The PROTIG 201L AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminum, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooler, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

DC TIG: Ensures quality welding on all ferrous materials such as steel, stainless steel as well as copper and its alloys, titanium…
Pulsed DC TIG: Controls the temperature of the weld pool, limits distortion and thus enables the assembly of thin sheets from 0.3 mm.
DC TIG Spot: Pre-assembles ferrous metal parts by tack welding

AC Easy TIG: Simplifies use of the welding machine thanks to predefined parameters. The user only selects their tungsten electrode diameter on the interface
Standard TIG: Dedicated to welding aluminum and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures prior cleaning of the aluminum for a quality weld.
AC TIG Spot: Pre-assembles aluminum parts by tack welding.

2 coated electrode welding modes

Standard MMA: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical upward welding (pipes/pipeline...).

Usage assistance for the welder

2 ignition types: HF contactless or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press it again to stop welding.
- 4T "LOG": the operator can switch at any time between 2 welding currents with a brief trigger pulse (hot current and cold current)

MMA welding assistance: - Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable according to metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Storage of up to 50 programs per process

• Current/voltage display after welding (verification of WPS/PQR compliance)
and connectivity for remote controls (foot pedal, manual remote control)

The PROTIG 231L DC PFC is a pulsed DC TIG welding generator with an integrated cooling unit. Its PFC technology allows it to operate from 195 V to 265 V and achieve a very stable arc even on 100 m site extension cords. In stick electrode welding, its Pulsed MMA mode facilitates vertical-up welding.

2 welding processes available with this unit:

-TIG DC
Standard DC: welding with smooth current on the majority of ferrous materials.
Pulsed DC up to 2 kHz: controls the temperature of the weld pool, limits distortion and enables the joining of thin sheets from 0.3 mm.

2 tacking modes:
- Spot: adjustable tacking from 0.1 to 60 seconds for parts before welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet metal before welding.
2 arc starting types:
- HF non-contact
- LIFT contact start for electrosensitive environments. 3 trigger modes: 2T, 4T and 4T LOG.

Advanced secondary regulation for optimal arc stability and constant current in all positions.
Memory storage of up to 50 programs per process for repetitive tasks. Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS)
Automatic torch detection: compatible with blade-type, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the open-circuit output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

MMA
Standard MMA: rutile and basic electrodes (up to Ø 5 mm).
Pulsed MMA up to 500 Hz: facilitates vertical-up position welding (pipe fittings/pipeline…)

Product highlights
Accepts extension cords up to 100 m.
Reinforced casing with anti-shock feet.
Compact and easy to move on site.
Protected against voltage surges up to 400 V (PROTEC 400).

This machine allows welding with tungsten electrodes (TIG welding) on steel, stainless steel, cast iron, copper, nickel and titanium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It is supplied with a 140A TIG torch with trigger, 4 m in length + earth clamp.

It also features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency NO-CONTACT arc striking

TIG 2T/4T( manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional striking power when an electrode is difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and welding duration.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input to the workpiece is required, and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision as well.

THINSPOT function, enabling fast and precise spot welding.

Supplied with

1 TIG ST 26 torch, length 4 m.
1 double-gauge regulator for refillable cylinder.
1 earth clamp + 25 mm² cable, length 3 m
1 rubber gas hose, length 2 m.

For the gas connection of the machine, it is recommended to use connector 804208.

The PROTIG 200 AC/DC (200 A) is a versatile dual-process welding machine for TIG AC/DC and MMA (coated electrode) welding, in a compact and portable format. It allows joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper, magnesium or titanium). Its advanced secondary regulation ensures optimal arc stability and constant current in all positions.

5 TIG WELDING MODES

In DC mode
Standard DC: welding in direct current on the majority of ferrous materials.
Pulsed DC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.

In AC mode
Pulsed AC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.
AC Easy: simplifies use of the welding machine thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface.

OPTIMISED TIG SETTINGS
SPOT mode (TIG DC or AC): fast and precise tacking before welding thin sheet metal.
2 types of arc starting: HF contactless or LIFT by contact for electrically sensitive environments.
3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with latching and dual-button torches.

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm).
Pulsed MMA: facilitates vertical uphill welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Adjustable Hot Start: facilitates arc striking and is adjusted in seconds according to the metal type
- Arc Force: momentary increase in current in difficult welding situations.

MAXIMUM PRODUCTIVITY
Memory for up to 30 programs per process.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS).
Reinforced casing with anti-shock pads.
Compact and easily movable on site.
Intelligent ventilation management to reduce power consumption, dust intake and machine noise.
Protected against overvoltages up to 400 V (PROTEC 400).

Delivered with:
1 TIG 26DB torch length 4 m, supplied with 1 Ø 1.6 electrode + 1 Ø 2.4 mm Cerium grey electrode (for stainless steel and steel welding) + A gas diffuser and an electrode holder for both tungsten electrode diameters + A GR5 ceramic nozzle and a GR7 ceramic nozzle
1 earth clamp + cable 25 mm² section length 2 m
1 electrode holder + cable 25 mm² section length 2 m

The Rogue ET 230iP AC/DC is a professional, portable, high-quality AC/DC TIG welding machine designed to excel in the daily welding of aluminum, stainless steel, and carbon steel.

The intuitive graphical interface with a 5-inch color screen offers new features for quick and easy adjustments. The machine can handle a wide range of thicknesses, including very thin sheet metal.

Selectable waveforms (square, soft square, sinusoidal, triangle) allow optimized heat input for high penetration on thicker materials and low distortion on thin sheets. Pulsed capabilities in DC TIG and AC TIG provide better control of the weld pool, allowing the welder to further customize the arc for multiple applications. TIG arc starts are designed to optimize performance based on the selected diameter and type of tungsten electrode.

The durable enclosure design combines strength and functionality with multiple lifting points for easy handling in the workshop and in the field.

Its key features:

- Different AC/DC waveforms (square - sinusoidal - triangle) for optimal energy transfer.
- Pulsed in AC TIG AND DC TIG up to 200 Hz for better control of heat input and the weld pool
- The integrated PFC circuit ensures a stable arc, even with extremely long power cables, up to 100 m
- New CoolMini 3 water cooling unit for lightweight TIG torches (not included in this version of the machine).
An intuitive and highly visible interface with a 5-inch color screen reduces downtime and improves precision.
- Dual current mode switches between two output current levels to control heat input and weld pool size.
- Easy access via the flashlight button to saved jobs
- Modular system with tool-free connection to the trolley.
- New Exeor TIG torch included.

Supplied with:
A ground cable 3 m in length
An air-cooled Exeor SR17 TIG torch 4 m in length
A gas hose 4 m in length

The Rogue ET 230iP AC/DC is a professional, portable, high-quality AC/DC TIG welding machine designed to excel in the daily welding of aluminium, stainless steel and carbon steel.

The intuitive graphical interface with a 5-inch color screen offers new features for quick and easy adjustments. The machine can handle a wide range of material thicknesses, including very thin sheets.

The selectable waveforms (square, soft square, sinusoidal, triangle) allow optimized heat input for high penetration on thicker materials and low distortion on thin sheets. The pulsed DC TIG and AC TIG capabilities provide better control of the weld pool, allowing the welder to further customize the arc for multiple applications. TIG arc starts are designed to optimize performance based on the selected tungsten electrode diameter and type.

The durable enclosure design combines strength and functionality with multiple lifting points for easy handling in the workshop and on-site.

Its key features:

- Different AC/DC waveforms (square - sinusoidal - triangle) for optimal energy transfer.
- Pulsed in AC TIG AND DC TIG up to 200 Hz for better control of heat input and the weld pool
- The integrated PFC circuit allows a stable arc, even with extremely long power cables, up to 100 m
- New CoolMini 3 water cooling unit for lightweight TIG torches
An intuitive and highly visible interface with a 5-inch color screen reduces downtime and improves precision.
- The dual current mode switches between two output current levels to control heat input and weld pool size.
- Easy access via the flashlight button to saved jobs
- Modular system with tool-free connection to the trolley.
- New Exeor TIG torch included.

Delivered with:
A ground cable 3 m long
An Exeor SR21 TIG torch 4 m long
A gas hose 4 m long
A CoolMini 3 cooling unit
