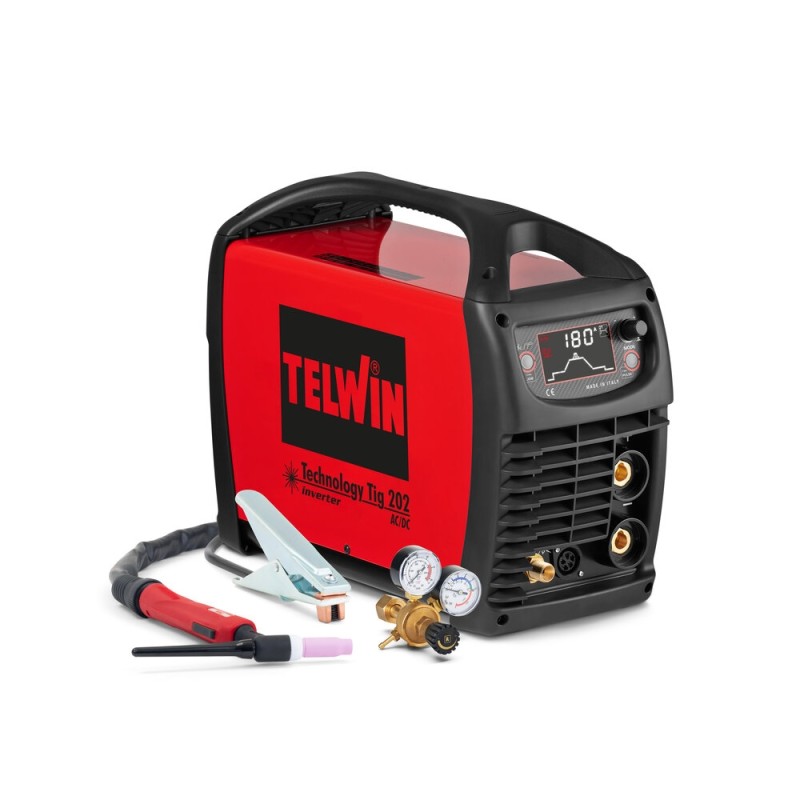

TELWIN - TIG AC/DC HF Technology 202 | Welding machine without accessories

This inverter technology unit makes electrode welding easier thanks to direct current and its low power consumption
(230V-16A power supply).

It has an adjustment range of 10 to 170 A.
The digital amperage display allows you to be more precise in your work.

TIG welding allows you to weld thin thicknesses that you could not achieve with an electrode in MMA mode.

Welding possible on steel, stainless steel, copper, nickel... from 0.5 mm thickness.

TIG welding mode requires the use of a shielding gas during the welding operation (pure Argon).

Arc striking is achieved by touching the tip of the tungsten electrode to the metal workpiece and lifting it slightly to create the welding arc (TIG-LIFT striking method).

It features protection (+/- 15% variation) against electrical overloads, allowing it to be powered by a generator. However, the generator must supply a stabilized current.

Equipped with the following systems:
HOT START to facilitate arc striking, ANTI-STICKING which eliminates the problem of the electrode sticking to the workpiece, and ARC FORCE which increases the arc power when the welding arc is kept short.
VRD: This device reduces the voltage when the welding unit is switched on but not in welding mode; it thus ensures the welder's safety should they accidentally touch the electrode.

Supplied in a carry case with:

1 TIG torch 110 A with valve, gas opening valve on the torch; length 4 m.
This torch is fitted with a ceramic nozzle and a tungsten electrode Ø 1.6 mm.
1 flow meter for refillable gas cylinder.
1 MMA electrode holder allowing the use of rutile or basic electrode rods from Ø 1.6 to 4 mm, cable length 3 m.
1 earth clamp + cable length 3 m.

The Rogue ET 230iP AC/DC is a professional, portable, high-quality AC/DC TIG welding machine designed to excel in the daily welding of aluminium, stainless steel and carbon steel.

The intuitive graphical interface with a 5-inch color screen offers new features for quick and easy adjustments. The machine can handle a wide range of material thicknesses, including very thin sheets.

The selectable waveforms (square, soft square, sinusoidal, triangle) allow optimized heat input for high penetration on thicker materials and low distortion on thin sheets. The pulsed DC TIG and AC TIG capabilities provide better control of the weld pool, allowing the welder to further customize the arc for multiple applications. TIG arc starts are designed to optimize performance based on the selected tungsten electrode diameter and type.

The durable enclosure design combines strength and functionality with multiple lifting points for easy handling in the workshop and on-site.

Its key features:

- Different AC/DC waveforms (square - sinusoidal - triangle) for optimal energy transfer.
- Pulsed in AC TIG AND DC TIG up to 200 Hz for better control of heat input and the weld pool
- The integrated PFC circuit allows a stable arc, even with extremely long power cables, up to 100 m
- New CoolMini 3 water cooling unit for lightweight TIG torches
An intuitive and highly visible interface with a 5-inch color screen reduces downtime and improves precision.
- The dual current mode switches between two output current levels to control heat input and weld pool size.
- Easy access via the flashlight button to saved jobs
- Modular system with tool-free connection to the trolley.
- New Exeor TIG torch included.

Delivered with:
A ground cable 3 m long
An Exeor SR21 TIG torch 4 m long
A gas hose 4 m long
A CoolMini 3 cooling unit

The Rogue ET 230iP AC/DC is a professional, portable, high-quality AC/DC TIG welding machine designed to excel in the daily welding of aluminum, stainless steel, and carbon steel.

The intuitive graphical interface with a 5-inch color screen offers new features for quick and easy adjustments. The machine can handle a wide range of thicknesses, including very thin sheet metal.

Selectable waveforms (square, soft square, sinusoidal, triangle) allow optimized heat input for high penetration on thicker materials and low distortion on thin sheets. Pulsed capabilities in DC TIG and AC TIG provide better control of the weld pool, allowing the welder to further customize the arc for multiple applications. TIG arc starts are designed to optimize performance based on the selected diameter and type of tungsten electrode.

The durable enclosure design combines strength and functionality with multiple lifting points for easy handling in the workshop and in the field.

Its key features:

- Different AC/DC waveforms (square - sinusoidal - triangle) for optimal energy transfer.
- Pulsed in AC TIG AND DC TIG up to 200 Hz for better control of heat input and the weld pool
- The integrated PFC circuit ensures a stable arc, even with extremely long power cables, up to 100 m
- New CoolMini 3 water cooling unit for lightweight TIG torches (not included in this version of the machine).
An intuitive and highly visible interface with a 5-inch color screen reduces downtime and improves precision.
- Dual current mode switches between two output current levels to control heat input and weld pool size.
- Easy access via the flashlight button to saved jobs
- Modular system with tool-free connection to the trolley.
- New Exeor TIG torch included.

Supplied with:
A ground cable 3 m in length
An air-cooled Exeor SR17 TIG torch 4 m in length
A gas hose 4 m in length

The TITANIUM 230 AC/DC FV is a single-phase TIG AC/DC welding generator. Smart and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to its integrated power factor corrector. It combines excellent ergonomics and an exceptional user experience with advanced welding functions

6 TIG WELDING MODES
DC Standard: welding with smooth current on most ferrous materials.
DC Pulsed: allows parts to be assembled while limiting heat input (pulses up to 2.5 kHz).
FastPulse: pulses up to 20 kHz on special steels.
AC Standard: welding of aluminium and its alloys (Al, AlSi, AlMg, AlMn, etc.).
AC Pulsed: precise penetration control based on AC frequency setting (pulses up to 500 Hz).
AC Mix: alternating AC and DC current to increase welding speed

TIG WIZARD SOLUTION
Patented synergic mode for maximum productivity with tacking and welding of Aluminium, Steel, Stainless Steel and Copper parts with or without filler metal.
5 joint types: Butt (BW), Fillet (FW), Inside corner (BP), Outside corner and wire splicing.
Wizard Lab for performing complex welding cycles

OPTIMIZED SETTINGS
4 tacking modes:
- Spot / Multi Spot: traditional tacking prior to welding thin sheet metal.
- Tack / Multi Tack: ultra-precise, oxidation-free tacking reducing the risk of distortion.
3 arc ignition types: Lift, HF and Touch.HF (timed high-frequency ignition).
3 trigger modes: 2T, 4T and 4T LOG
AC waveform shaping settings for improved arc control and penetration.
E-TIG mode ensures the welder maintains the correct welding power regardless of the torch position relative to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY
Precisely measured energy input.
Traceability of all weld beads in accordance with EN 3834 standard.
Welding accessory calibration mode (refines energy calculation).
Connectable via an optional kit (037960) for use on a robot.
User mode to share the product with multiple welders.
Free online tool available for interface customization.
Save, from a USB key, user JOBs (500 max.) as well as machine configuration.
Compatible with lamellar, double-button, potentiometer and Up & Down torches.
Complete machine and synergy update via USB key.
Remote controls (foot pedal or manual, optional) connectable without tools.
MMA, MMA AC and Pulsed MMA modes (electrodes weldable up to Ø 8 mm).
VRD (Voltage Reduction Device) activatable to lower the no-load output voltage to < 35 V.
"FV" technology guarantees a consistently stable electric arc even in the event of mains voltage variations (85 to 265 V), generator power supply or use of very long power cables.

The PROTIG 230 AC/DC FV is a high-performance, compact and portable TIG AC/DC and MMA welding machine, ideal for demanding work on site as well as in the workshop.

It can weld all types of materials up to 4 mm thick: steel, stainless steel, aluminum, copper, magnesium, titanium, etc. Thanks to its PFC technology, it operates over a wide voltage range (85 V to 265 V) and guarantees a stable electric arc, even with a 100-meter extension cord.

5 TIG welding modes:

- DC Standard: for ferrous metals

- Pulsed DC: limits heat buildup, perfect for thin sheets

- AC Standard: for aluminum and its alloys

- Pulsed AC: ideal for thin aluminum

- AC Easy: simplified mode with automatic settings (electrode diameter selection only)

Advanced TIG functions:

- SPOT mode: quick tacking before welding

- HF or LIFT ignition: to adapt to all environments

- Trigger controls: 2T, 4T and 4T LOG

- Automatic torch detection: compatible with flex-head and double-button torches

- Compatible with basic and rutile electrodes up to Ø4 mm

- Pulsed MMA: ideal for vertical welding (e.g.: pipework)

Integrated aids:

- Adjustable Hot Start: easier arc ignition

- Arc Force: temporary current boost for difficult welds

- Antisticking: prevents electrode sticking

Designed for productivity

- Up to 30 memorizable programs per process

- Advanced menu for precise control

- Current/voltage display during and after welding (DMOS/QMOS)

- Reinforced chassis with anti-shock pads

- Compact and easy to transport

- Smart fan: reduces power consumption, noise and dust

- Overvoltage protection up to 400 V (PROTEC 400 technology)

The PROTIG 231L DC PFC is a pulsed DC TIG welding generator with an integrated cooling unit. Its PFC technology allows it to operate from 195 V to 265 V and achieve a very stable arc even on 100 m site extension cords. In stick electrode welding, its Pulsed MMA mode facilitates vertical-up welding.

2 welding processes available with this unit:

-TIG DC
Standard DC: welding with smooth current on the majority of ferrous materials.
Pulsed DC up to 2 kHz: controls the temperature of the weld pool, limits distortion and enables the joining of thin sheets from 0.3 mm.

2 tacking modes:
- Spot: adjustable tacking from 0.1 to 60 seconds for parts before welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet metal before welding.
2 arc starting types:
- HF non-contact
- LIFT contact start for electrosensitive environments. 3 trigger modes: 2T, 4T and 4T LOG.

Advanced secondary regulation for optimal arc stability and constant current in all positions.
Memory storage of up to 50 programs per process for repetitive tasks. Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS)
Automatic torch detection: compatible with blade-type, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the open-circuit output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

MMA
Standard MMA: rutile and basic electrodes (up to Ø 5 mm).
Pulsed MMA up to 500 Hz: facilitates vertical-up position welding (pipe fittings/pipeline…)

Product highlights
Accepts extension cords up to 100 m.
Reinforced casing with anti-shock feet.
Compact and easy to move on site.
Protected against voltage surges up to 400 V (PROTEC 400).

The ASPECT® 200 AC/DC is equipped with advanced TIG AC/DC functions (4 waveforms, a pulsed mode, adjustable balance and offset), making it ideal for the most demanding TIG AC or DC welding applications.
It allows welding of materials up to 6 mm thick.

It offers a simple control panel with a bright digital display for easy visualisation and control of welding parameters.
2T and 4T mode selection
Innovative adjustment system via button control from the TIG torch.
Option to adjust via foot pedal or remote control
Spot mode.
Memory mode for saving your settings
Waveform selection.

Excellent electric arc performance = » Excellent ignition, fast and stable, minimum current 2A
Device "1 Phase Buck-boost Circuit" = » Low power consumption
» Bright digital display = Easy adjustment of all parameters
» Cooling unit and transport trolley = Easy transport on site » High robustness
» Encapsulated printed circuit board and "TRUE HD" manufacturing = High robustness
» Generator compatible = Ideal for outdoor job sites
» Advanced TIG AC/DC functions = 4 welding waveforms, Pulsed mode, adjustable Balance and Offset, simple control panel, self-adjustable AC current

To be used optimally and at its maximum capacity (200A) under intensive use, this unit must be paired with a cooling unit and a water-cooled torch.
The TIG setup can be converted to a water-cooled torch setup simply by adding a COOL ARC® 24 cooling unit.

In MMA mode, this unit features the following technologies:

Hot Start: Facilitates and speeds up arc ignition by providing a current surge to prevent electrode sticking.
Anti-sticking: Automatically reduces the output current in the event of a stuck electrode.
Arc Force: Temporary increase in welding current when the arc is too short.

The PROTIG 201L AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminum, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooler, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

DC TIG: Ensures quality welding on all ferrous materials such as steel, stainless steel as well as copper and its alloys, titanium…
Pulsed DC TIG: Controls the temperature of the weld pool, limits distortion and thus enables the assembly of thin sheets from 0.3 mm.
DC TIG Spot: Pre-assembles ferrous metal parts by tack welding

AC Easy TIG: Simplifies use of the welding machine thanks to predefined parameters. The user only selects their tungsten electrode diameter on the interface
Standard TIG: Dedicated to welding aluminum and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures prior cleaning of the aluminum for a quality weld.
AC TIG Spot: Pre-assembles aluminum parts by tack welding.

2 coated electrode welding modes

Standard MMA: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical upward welding (pipes/pipeline...).

Usage assistance for the welder

2 ignition types: HF contactless or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press it again to stop welding.
- 4T "LOG": the operator can switch at any time between 2 welding currents with a brief trigger pulse (hot current and cold current)

MMA welding assistance: - Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable according to metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Storage of up to 50 programs per process

• Current/voltage display after welding (verification of WPS/PQR compliance)
and connectivity for remote controls (foot pedal, manual remote control)

This ESAB Renegade ET 210Ip Advanced is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with IP23 protection rating, capable of being used even in the most demanding environments.

Thanks to its low weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210Ip Advanced is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or if an extension cord is used (length up to 100 m).

Easy to use. It offers direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It enables MMA welding of rutile, basic, stainless steel, cast iron... and also cellulosic electrodes.

Technical specifications:

- High robustness with IP23 protection rating, for use in workshops and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra-long power cable, up to 100 m

- Intuitive and quick-to-configure panel, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- 4.3-inch color screen with visual display of settings

- Easy access to up to 10 personal programs via the flashlight button

- Modular system to connect the cooling unit (optional) and the cart (optional)
without tools

Examples of application sectors
Naval and offshore construction
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general manufacturing
Mining
Steel formwork

Supplied with:
1 earth clamp + cable 25 mm² length 3 m - 13 mm connector
1 strap for shoulder carrying of the unit when working at height + anchor points for lifting.
1 TIG torch SR 17 length 4 m
1 gas hose length 4 m

Electrode holder optional

This ESAB Renegade ET 210iP is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with IP23 protection rating, capable of being used even in the most demanding environments.

Thanks to its light weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210iP is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or if an extension lead is used (length up to 100 m).

Easy to use. It provides direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It allows MMA welding of rutile, basic, stainless steel, cast iron electrodes... and also cellulosic ones.

Technical specifications:

- High robustness with IP23 protection rating, for use in workshops and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra-long power supply cable, up to 100 m

- Intuitive panel, quick to configure, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general fabrication
Mining
Steel formwork

Supplied with:
1 earth clamp + 25 mm² cable length 3 m - 13 mm connector
1 strap for carrying the machine on the shoulder when working at height + anchor points for lifting.
1 TIG torch SR-B 26 length 4 m
1 gas hose length 4 m

Electrode holder optional

The PROTIG 231 DC FV is a pulsed DC TIG welding generator, very compact and portable. Its PFC technology allows it to operate from 85 V to 265 V and to achieve a very stable arc even on 100 m site extension leads. In electrode welding, its Pulsed MMA mode facilitates vertical upward welding.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
- TIG DC: provides quality welding on all ferrous materials such as steel, stainless steel as well as copper and its alloys.
- Pulsed TIG DC up to 2 kHz: controls the temperature of the weld pool, limits deformation and enables assembly of thin sheets from 0.3 mm.
- Adjustable SPOT from 0.1 to 25 sec: fast and precise tacking before welding thin sheets.
- 2 arc starting types: HF contactless or LIFT by contact for electrosensitive environments.
- 3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with blade, dual-button and potentiometer torches
- 2 tacking modes: - Spot: adjustable tacking from 0.1 to 60 seconds of parts before welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet before welding

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 5 mm).
Pulsed MMA: facilitates vertical upward welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking on contact with the workpiece
- Hot Start: facilitates arc striking and is adjustable in seconds depending on the metal type
- Arc Force: momentary current increase in difficult welding situations.

MAXIMUM PRODUCTIVITY
Advanced secondary regulation for optimal arc stability and constant current in all positions.
Storage of up to 50 programs per process for repetitive tasks.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS). Automatic torch detection: compatible with blade, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the no-load output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and unit noise.

IDEAL ON SITE
Accepts extension leads up to 100 m.
Reinforced body and anti-shock pads.
Compact and easy to move on site.
Protected against overvoltages up to 400 V (PROTEC 400)

The TITANIUM 230 AC/DC FV is a single-phase TIG AC/DC welding generator. Intelligent and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to its integrated power factor corrector. It combines excellent ergonomics and an exceptional user experience with advanced welding functions

6 TIG WELDING MODES
DC Standard: welding with smooth current on the majority of ferrous materials.
DC Pulsed: allows parts to be assembled while limiting heat input (pulses up to 2.5 kHz).
FastPulse: pulses up to 20 kHz on special steels.
AC Standard: welding of aluminium and its alloys (Al, AlSi, AlMg, AlMn, etc).
AC Pulsed: precise control of penetration according to the AC frequency setting (pulses up to 500 Hz).
AC Mix: alternation of AC and DC current to increase welding speed

TIG WIZARD SOLUTION
Patented synergic mode for maximum productivity with tacking and welding of Aluminium, Steel, Stainless Steel and Copper parts with or without filler metal.
5 joint types: Butt weld (BW), Fillet weld (FW), Inside corner (BP), Outside corner and wire splicing.
Wizard Lab for the creation of complex welding cycles

OPTIMISED SETTINGS
4 tacking modes:
- Spot / Multi Spot: traditional tacking before welding thin sheet metal.
- Tack / Multi Tack: ultra-precise tacking without oxidation reducing the risk of distortion.
3 arc start types: Lift, HF and Touch.HF (timed high-frequency arc start).
3 trigger modes: 2T, 4T and 4T LOG
AC waveform settings favouring arc control and penetration.
E-TIG mode ensures the welder maintains the welding power regardless of the torch position relative to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY
Precisely measured energy input.
Traceability of all weld beads in accordance with EN 3834 standard.
Welding accessories calibration mode (refines energy calculation).
Connectable via an optional kit (037960) for use on a robot.
User mode to share the product with multiple welders.
Free online tool available for interface customisation.
Save, from a USB key, user JOBs (500 max.) as well as machine configuration.
Compatible with lamellar, double button, potentiometer and Up & Down torches.
Full machine and synergy update via USB key.
Remote controls (foot pedal or manual, optional) connectable without tools.
MMA, MMA AC and Pulsed MMA modes (electrodes weldable up to Ø 8 mm).
VRD (Voltage Reduction Device) activatable to lower the no-load output voltage to < 35 V.
«FV» technology guarantees a consistently stable electric arc even in the event of variations in mains voltage (85 to 265 V), generator power supply or use of a very long power cable.

Unit supplied with:

1 Koolweld 1 cooling unit
1 earth cable LENGTH 4 M + Croco T400.70 clamp
1 TIG PRO 26B torch length 8 m.

Ultra-compact, the PROTIG 160 DC (160 A) with Lift arc start ensures high-quality welds on mild and stainless steels. Its intuitive interface allows you to adjust parameters with ease.

OPTIMISED DC WELDING
DC TIG: ensures quality welding on all ferrous materials such as steel, stainless steel and also copper and its alloys.
Lift contact arc start for electrosensitive environments.
Excellent weld finish thanks to downslope (user-adjustable) and post-gas (managed automatically).
Automatic torch detection: compatible with lamella and double-button torches.

MMA WELDING
MMA welding current from 20 to 160 A.
Compatible with basic, rutile, stainless steel and cast iron electrodes (up to Ø 4 mm).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start (adjustable): facilitates arc starting and is set in seconds according to the type of metal
- Arc Force: momentary increase in current in difficult welding situations

SAFETY FEATURES
Optimised machine cooling with thermal protection.
Protected against overloads and overvoltages up to 400 V. Compatible with a generator.

Supplied with
1 TIG torch SR17 DB length 4 m
1 earth clamp + cable cross-section 16 mm² length 2 m
1 electrode holder + cable cross-section 16 mm² length 2 m

The PROTIG 201 AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision in many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, as well as copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits deformation and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tack welding

TIG AC Easy: Simplifies the use of the welding unit thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures preliminary cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tack welding.

2 stick electrode welding modes

MMA Standard: Accepts basic, rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical up-position welding (pipe fittings/pipeline...).

User assistance for the welder

2 arc ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T "LOG": the operator can switch between 2 welding currents at any time with a brief pulse on the trigger (hot current and cold current)

MMA welding assistance: - Anti-sticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc striking and can be adjusted according to the type of metal
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Memory for up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of compliance with WPS/WPQR)
• Reinforced casing and anti-shock pads

Unit delivered without accessories

The PROTIG 200 AC/DC (200 A) is a versatile dual-process welding machine for TIG AC/DC and MMA (coated electrode) welding, in a compact and portable format. It allows joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper, magnesium or titanium). Its advanced secondary regulation ensures optimal arc stability and constant current in all positions.

5 TIG WELDING MODES

In DC mode
Standard DC: welding in direct current on the majority of ferrous materials.
Pulsed DC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.

In AC mode
Pulsed AC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.
AC Easy: simplifies use of the welding machine thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface.

OPTIMISED TIG SETTINGS
SPOT mode (TIG DC or AC): fast and precise tacking before welding thin sheet metal.
2 types of arc starting: HF contactless or LIFT by contact for electrically sensitive environments.
3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with latching and dual-button torches.

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm).
Pulsed MMA: facilitates vertical uphill welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Adjustable Hot Start: facilitates arc striking and is adjusted in seconds according to the metal type
- Arc Force: momentary increase in current in difficult welding situations.

MAXIMUM PRODUCTIVITY
Memory for up to 30 programs per process.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS).
Reinforced casing with anti-shock pads.
Compact and easily movable on site.
Intelligent ventilation management to reduce power consumption, dust intake and machine noise.
Protected against overvoltages up to 400 V (PROTEC 400).

Delivered with:
1 TIG 26DB torch length 4 m, supplied with 1 Ø 1.6 electrode + 1 Ø 2.4 mm Cerium grey electrode (for stainless steel and steel welding) + A gas diffuser and an electrode holder for both tungsten electrode diameters + A GR5 ceramic nozzle and a GR7 ceramic nozzle
1 earth clamp + cable 25 mm² section length 2 m
1 electrode holder + cable 25 mm² section length 2 m
