TELWIN - TIG HF Technology 230 DC HF | TIG Welding Machine

The TITANIUM 230 AC/DC FV is a single-phase TIG AC/DC welding generator. Intelligent and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to its integrated power factor corrector. It combines excellent ergonomics and an exceptional user experience with advanced welding functions

6 TIG WELDING MODES
DC Standard: welding with smooth current on the majority of ferrous materials.
DC Pulsed: allows parts to be assembled while limiting heat input (pulses up to 2.5 kHz).
FastPulse: pulses up to 20 kHz on special steels.
AC Standard: welding of aluminium and its alloys (Al, AlSi, AlMg, AlMn, etc).
AC Pulsed: precise control of penetration according to the AC frequency setting (pulses up to 500 Hz).
AC Mix: alternation of AC and DC current to increase welding speed

TIG WIZARD SOLUTION
Patented synergic mode for maximum productivity with tacking and welding of Aluminium, Steel, Stainless Steel and Copper parts with or without filler metal.
5 joint types: Butt weld (BW), Fillet weld (FW), Inside corner (BP), Outside corner and wire splicing.
Wizard Lab for the creation of complex welding cycles

OPTIMISED SETTINGS
4 tacking modes:
- Spot / Multi Spot: traditional tacking before welding thin sheet metal.
- Tack / Multi Tack: ultra-precise tacking without oxidation reducing the risk of distortion.
3 arc start types: Lift, HF and Touch.HF (timed high-frequency arc start).
3 trigger modes: 2T, 4T and 4T LOG
AC waveform settings favouring arc control and penetration.
E-TIG mode ensures the welder maintains the welding power regardless of the torch position relative to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY
Precisely measured energy input.
Traceability of all weld beads in accordance with EN 3834 standard.
Welding accessories calibration mode (refines energy calculation).
Connectable via an optional kit (037960) for use on a robot.
User mode to share the product with multiple welders.
Free online tool available for interface customisation.
Save, from a USB key, user JOBs (500 max.) as well as machine configuration.
Compatible with lamellar, double button, potentiometer and Up & Down torches.
Full machine and synergy update via USB key.
Remote controls (foot pedal or manual, optional) connectable without tools.
MMA, MMA AC and Pulsed MMA modes (electrodes weldable up to Ø 8 mm).
VRD (Voltage Reduction Device) activatable to lower the no-load output voltage to < 35 V.
«FV» technology guarantees a consistently stable electric arc even in the event of variations in mains voltage (85 to 265 V), generator power supply or use of a very long power cable.

Unit supplied with:

1 Koolweld 1 cooling unit
1 earth cable LENGTH 4 M + Croco T400.70 clamp
1 TIG PRO 26B torch length 8 m.

The Rogue ET 230iP AC/DC is a professional, portable, high-quality AC/DC TIG welding machine designed to excel in the daily welding of aluminium, stainless steel and carbon steel.

The intuitive graphical interface with a 5-inch color screen offers new features for quick and easy adjustments. The machine can handle a wide range of material thicknesses, including very thin sheets.

The selectable waveforms (square, soft square, sinusoidal, triangle) allow optimized heat input for high penetration on thicker materials and low distortion on thin sheets. The pulsed DC TIG and AC TIG capabilities provide better control of the weld pool, allowing the welder to further customize the arc for multiple applications. TIG arc starts are designed to optimize performance based on the selected tungsten electrode diameter and type.

The durable enclosure design combines strength and functionality with multiple lifting points for easy handling in the workshop and on-site.

Its key features:

- Different AC/DC waveforms (square - sinusoidal - triangle) for optimal energy transfer.
- Pulsed in AC TIG AND DC TIG up to 200 Hz for better control of heat input and the weld pool
- The integrated PFC circuit allows a stable arc, even with extremely long power cables, up to 100 m
- New CoolMini 3 water cooling unit for lightweight TIG torches
An intuitive and highly visible interface with a 5-inch color screen reduces downtime and improves precision.
- The dual current mode switches between two output current levels to control heat input and weld pool size.
- Easy access via the flashlight button to saved jobs
- Modular system with tool-free connection to the trolley.
- New Exeor TIG torch included.

Delivered with:
A ground cable 3 m long
An Exeor SR21 TIG torch 4 m long
A gas hose 4 m long
A CoolMini 3 cooling unit

Welding and pickling with a single TIG machine
The Minarc T223 AC/DC is a brand new single-phase 220 A TIG AC/DC welding unit with an integrated electrolytic weld pickling process.

The Minarc T223 AC/DC includes standard and pulsed welding functions as well as memory channels and remote control options.
The adjustment controls are easy to use and the large, clear colour screen features a protective cover against impacts.

The new MAX Weldclean process is simple and quick to use.
Converting the TIG torch to pickling mode takes only a few moments. Your welds are clean, ready and perfect faster.

You weld, clean the welds with a low current and a cleaning solution, then neutralise with water.

The unit comes with:
- a TX225G torch with a length of 4 m
- A ground clamp + cable

The PROTIG 231L DC PFC is a pulsed DC TIG welding generator with an integrated water cooling unit. Its PFC technology allows it to operate from 195 V to 265 V and achieve a very stable arc even on 100 m site extension leads. In stick electrode welding, its Pulsed MMA mode facilitates upward welding.

2 welding processes possible with this unit:

-TIG DC
DC Standard: welding with smooth current on the majority of ferrous materials.
Pulsed DC up to 2 kHz: controls the temperature of the weld pool, limits distortion and allows the joining of thin sheet metal from 0.3 mm.

2 tacking modes:
- Spot: adjustable tacking from 0.1 to 60 seconds for parts prior to welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet metal prior to welding.
2 arc ignition types:
- HF non-contact
- LIFT by contact for electrically sensitive environments. 3 trigger modes: 2T, 4T and 4T LOG.

Advanced secondary regulation for optimal arc stability and constant current in all positions.
Memory storage of up to 50 programs per process for repetitive tasks. Advanced menu for optimal welding control.
Current and voltage display during and after welding (WPS/PQR)
Automatic torch detection: compatible with blade-type, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the open-circuit output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and unit noise.

MMA
MMA Standard: rutile and basic electrodes (up to Ø 5 mm).
Pulsed MMA up to 500 Hz: facilitates vertical upward welding (pipe joints / pipeline…)

Product highlights
Accepts extension leads up to 100 m.
Reinforced casing and anti-shock feet.
Compact and easily portable on site.
Protected against overvoltages up to 400 V (PROTEC 400).

Unit delivered with:
1 SR20 DB torch 4 m long
1 earth clamp + cable section 25 mm² length 2 m
1 electrode holder + cable section 25 mm² length 2 m

TIG AC/DC inverter welding machine (HF or LIFT), PULSED TIG (PULSE and EASY PULSE) and MMA.
Compatible with various types of materials such as steel, stainless steel, aluminum, titanium, copper, nickel, magnesium and their alloys.
Designed to guarantee excellent results on any thickness, even the finest, the PULSE mode (including the simplified EASY PULSE version) reduces material distortion by ensuring high arc stability.
Advanced functions: MIX AC-DC for preparing AC welding of large-mass workpieces; THINSPOT for spot welding of very thin sheet metal.
The CL screen facilitates interaction with the product and simplifies the adjustment of multiple TIG welding curve parameters depending on the job.
Ability to save and recall custom programs.
Electrode welding in both continuous and pulsed mode (MMA Pulse), guaranteeing excellent results with basic electrodes and in positional welding.
Designed to guarantee long-term reliability, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Specifications:
TIG

• pulsed and EASY pulsed operation; in 2/4 stroke, Bi Level;
• 10 customizable welding programs;
• adjustment of multiple welding curve parameters: electrode pre-heating, initial/final current, spot welding time, pre/post gas, initial/final current ramp, DC/AC balance, square wave frequency;
• Advanced functions: THINSPOT for spot welding of very thin sheet metal; MIX AC-DC for heating the workpiece and preparing it for AC welding;
• start (HF/LIFT) at optimized minimum current;
• pre-equipped for remote control;
• compatibility with PRO torches;

MMA

• operation in continuous and pulsed current (MMA PULSE);
• hot start, arc force settings;
• anti-stick protection;
• VRD device;

Other specifications:

• CL screen for simplified interaction, immediate display and configuration of parameters;
• long-term reliability thanks to the dedicated air tunnel cooling system that protects against dust and dirt;
• ensures best performance even in the presence of undervoltages (up to -25%) and overvoltages (+15%);
• compact structure for easier transport and space saving;
• thermostatic, overvoltage, undervoltage, internal dirt, overcurrent, phase loss protections.

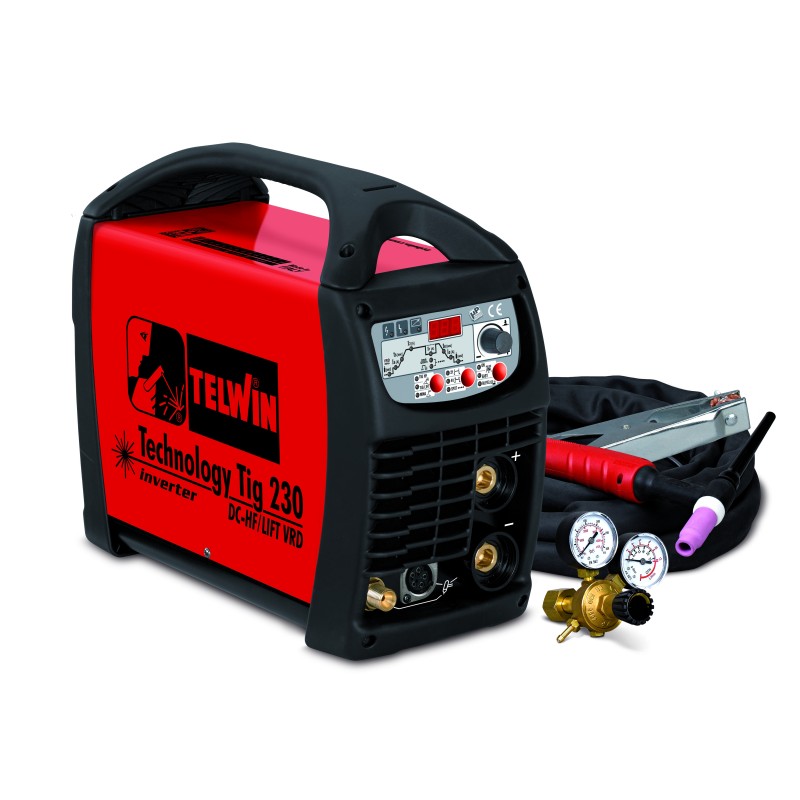

Supplied with TIG welding accessories.
1 TIG torch ST 26, length 4 m.
1 regulator with 2 pressure gauges for refillable cylinder.
1 ground clamp + 25 mm² cable, length 3 m

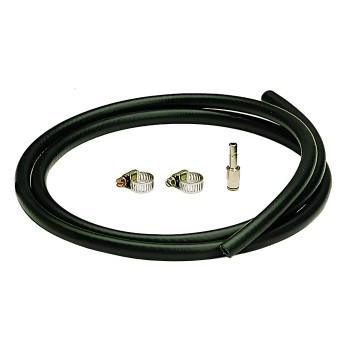

1 gas hose, length 2 m

This machine allows welding with tungsten electrodes (TIG welding) steel, stainless steel, copper, nickel ...including aluminium .

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High frequency CONTACTLESS ignition

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tacking of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and the welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function particularly suited for welding thin plates where low heat input to the workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system allowing immediate pulsed mode welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

For gas connection of the machine, it is recommended to use fitting 804208.

This unit enables welding of steel, stainless steel and aluminum; ignition is either HF or LIFT type.
Its adjustment range is 5 to 350 A - Max current 350 A @35%
In MMA welding, it allows the use of electrodes from Ø 1.6 to 6 mm.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input is required and adapted for welding in all positions.
When the pulse frequency increases, arc stability increases and therefore welding precision as well.
It also features the EASY PULSE system, allowing immediate pulsed welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

It features the following functions:

TIG LIFT : Facilitates electrode striking.

TIG HF High-frequency CONTACTLESS ignition

TIG 2T/4T( manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc extinction, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overload and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and welding duration.

VRD : Improves safety during welding operations in wet environments

It also features the PULSE function, particularly suited for welding thin sheets where low heat input is required and adapted for welding in all positions.
When the pulse frequency increases, arc stability increases and therefore welding precision as well.
It also features the EASY PULSE system, allowing immediate pulsed welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT, function enabling fast and precise spot welding.

Supplied with

1 water-cooled TIG torch ST 18A length 4 m.
1 dual-gauge regulator for refillable cylinder.
1 ground clamp + 25 mm² cable length 3 m
1 gas hose length 2 m
1 cart
1 cooling unit (coolant optional)

This unit enables welding with tungsten electrodes (TIG welding) on steel, stainless steel, copper, nickel...including aluminium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A TIG torch with trigger, 4 m in length, plus a ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency arc starting WITHOUT CONTACT

TIG 2T/4T (manual or automatic welding)

TIG SPOT enables tack welding of parts prior to welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc extinction, thereby preventing crater formation at the end of the weld bead.

ARC FORCE: This process increases amperage when the welding arc is held short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: when welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics.

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor based on the current intensity and welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function, particularly suitable for welding thin sheet metal where low heat input to the workpiece is required, and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system, allowing immediate welding in pulsed mode even if the welder is not accustomed to TIG welding, thanks to automatic parameter adjustment.

THINSPOT function, enabling fast and precise spot welding.

For connecting the unit to gas, it is recommended to use fitting 804208.

The Sprinter T is a compact and lightweight welding machine (under 9 kg) delivering 200 A for all electrode types up to 4 mm. Versatile, it offers MMA, HF TIG and pulsed TIG welding, with dual voltage 120/230 V and an intuitive interface, ideal for any maintenance, fabrication or light construction project

The PROTIG 230 AC/DC FV is a high-performance, compact and portable TIG AC/DC and MMA welding machine, ideal for demanding work on site as well as in the workshop.

It can weld all types of materials up to 4 mm thick: steel, stainless steel, aluminum, copper, magnesium, titanium, etc. Thanks to its PFC technology, it operates over a wide voltage range (85 V to 265 V) and guarantees a stable electric arc, even with a 100-meter extension cord.

5 TIG welding modes:

- DC Standard: for ferrous metals

- Pulsed DC: limits heat buildup, perfect for thin sheets

- AC Standard: for aluminum and its alloys

- Pulsed AC: ideal for thin aluminum

- AC Easy: simplified mode with automatic settings (electrode diameter selection only)

Advanced TIG functions:

- SPOT mode: quick tacking before welding

- HF or LIFT ignition: to adapt to all environments

- Trigger controls: 2T, 4T and 4T LOG

- Automatic torch detection: compatible with flex-head and double-button torches

- Compatible with basic and rutile electrodes up to Ø4 mm

- Pulsed MMA: ideal for vertical welding (e.g.: pipework)

Integrated aids:

- Adjustable Hot Start: easier arc ignition

- Arc Force: temporary current boost for difficult welds

- Antisticking: prevents electrode sticking

Designed for productivity

- Up to 30 memorizable programs per process

- Advanced menu for precise control

- Current/voltage display during and after welding (DMOS/QMOS)

- Reinforced chassis with anti-shock pads

- Compact and easy to transport

- Smart fan: reduces power consumption, noise and dust

- Overvoltage protection up to 400 V (PROTEC 400 technology)

The ASPECT® 200 AC/DC is equipped with advanced TIG AC/DC functions (4 waveforms, a pulsed mode, adjustable balance and offset), making it ideal for the most demanding TIG AC or DC welding applications.
It allows welding of materials up to 6 mm thick.

It offers a simple control panel with a bright digital display for easy visualisation and control of welding parameters.
2T and 4T mode selection
Innovative adjustment system via button control from the TIG torch.
Option to adjust via foot pedal or remote control
Spot mode.
Memory mode for saving your settings
Waveform selection.

Excellent electric arc performance = » Excellent ignition, fast and stable, minimum current 2A
Device "1 Phase Buck-boost Circuit" = » Low power consumption
» Bright digital display = Easy adjustment of all parameters
» Cooling unit and transport trolley = Easy transport on site » High robustness
» Encapsulated printed circuit board and "TRUE HD" manufacturing = High robustness
» Generator compatible = Ideal for outdoor job sites
» Advanced TIG AC/DC functions = 4 welding waveforms, Pulsed mode, adjustable Balance and Offset, simple control panel, self-adjustable AC current

To be used optimally and at its maximum capacity (200A) under intensive use, this unit must be paired with a cooling unit and a water-cooled torch.
The TIG setup can be converted to a water-cooled torch setup simply by adding a COOL ARC® 24 cooling unit.

In MMA mode, this unit features the following technologies:

Hot Start: Facilitates and speeds up arc ignition by providing a current surge to prevent electrode sticking.
Anti-sticking: Automatically reduces the output current in the event of a stuck electrode.
Arc Force: Temporary increase in welding current when the arc is too short.

Sprinter 200 T

The PROTIG 231 DC FV is a pulsed DC TIG welding generator, very compact and portable. Its PFC technology allows it to operate from 85 V to 265 V and to achieve a very stable arc even on 100 m site extension leads. In electrode welding, its Pulsed MMA mode facilitates vertical upward welding.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
- TIG DC: provides quality welding on all ferrous materials such as steel, stainless steel as well as copper and its alloys.
- Pulsed TIG DC up to 2 kHz: controls the temperature of the weld pool, limits deformation and enables assembly of thin sheets from 0.3 mm.
- Adjustable SPOT from 0.1 to 25 sec: fast and precise tacking before welding thin sheets.
- 2 arc starting types: HF contactless or LIFT by contact for electrosensitive environments.
- 3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with blade, dual-button and potentiometer torches
- 2 tacking modes: - Spot: adjustable tacking from 0.1 to 60 seconds of parts before welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet before welding

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 5 mm).
Pulsed MMA: facilitates vertical upward welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking on contact with the workpiece
- Hot Start: facilitates arc striking and is adjustable in seconds depending on the metal type
- Arc Force: momentary current increase in difficult welding situations.

MAXIMUM PRODUCTIVITY
Advanced secondary regulation for optimal arc stability and constant current in all positions.
Storage of up to 50 programs per process for repetitive tasks.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS). Automatic torch detection: compatible with blade, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the no-load output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and unit noise.

IDEAL ON SITE
Accepts extension leads up to 100 m.
Reinforced body and anti-shock pads.
Compact and easy to move on site.
Protected against overvoltages up to 400 V (PROTEC 400)

The PROTIG 201 AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision in many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, as well as copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits deformation and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tack welding

TIG AC Easy: Simplifies the use of the welding unit thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures preliminary cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tack welding.

2 stick electrode welding modes

MMA Standard: Accepts basic, rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical up-position welding (pipe fittings/pipeline...).

User assistance for the welder

2 arc ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T "LOG": the operator can switch between 2 welding currents at any time with a brief pulse on the trigger (hot current and cold current)

MMA welding assistance: - Anti-sticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc striking and can be adjusted according to the type of metal
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Memory for up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of compliance with WPS/WPQR)
• Reinforced casing and anti-shock pads

Unit delivered without accessories

The PROTIG 201L AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminum, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooler, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

DC TIG: Ensures quality welding on all ferrous materials such as steel, stainless steel as well as copper and its alloys, titanium…
Pulsed DC TIG: Controls the temperature of the weld pool, limits distortion and thus enables the assembly of thin sheets from 0.3 mm.
DC TIG Spot: Pre-assembles ferrous metal parts by tack welding

AC Easy TIG: Simplifies use of the welding machine thanks to predefined parameters. The user only selects their tungsten electrode diameter on the interface
Standard TIG: Dedicated to welding aluminum and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures prior cleaning of the aluminum for a quality weld.
AC TIG Spot: Pre-assembles aluminum parts by tack welding.

2 coated electrode welding modes

Standard MMA: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical upward welding (pipes/pipeline...).

Usage assistance for the welder

2 ignition types: HF contactless or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press it again to stop welding.
- 4T "LOG": the operator can switch at any time between 2 welding currents with a brief trigger pulse (hot current and cold current)

MMA welding assistance: - Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable according to metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Storage of up to 50 programs per process

• Current/voltage display after welding (verification of WPS/PQR compliance)
and connectivity for remote controls (foot pedal, manual remote control)

Ultra-compact and designed for craftsmen, the PROTIG 161 DC HF (160 A) delivers high-quality welds on mild and stainless steels thanks to its advanced secondary regulation. Its intuitive interface makes parameter adjustment straightforward.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
TG DC: ensures quality welding on all ferrous materials such as steel, stainless steel, but also copper and its alloys…
TIG DC Pulsed: controls the temperature of the weld pool, limits distortion and thus allows the joining of thin sheets from 0.3 mm.
SPOT: fast and precise tacking before welding thin sheets.
2 ignition types: HF non-contact or LIFT contact for electrosensitive environments.
3 trigger modes: 2T, 4T and 4T LOG.
Automatic torch detection: compatible with blade and double-button torches

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm)
Pulsed MMA: facilitates upward vertical position welding (pipes/pipeline…)
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable in seconds depending on the metal type
- Arc Force: temporary current increase in difficult welding situations.

INTUITIVE
Current and voltage display during and after welding (WPS/WPQR).
Memorisation of 10 programs per process for perfect reproducibility of your welds.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

→ Supplied with:
1 TIG torch SR17 DB - 4 m, + accessories *
1 electrode holder and earth clamp with 25 mm² section cable, length 2 m.

* 1 electrode holder Ø 1.6 and 2.4 mm
1 diffuser for electrode Ø 1.6 and 2.4 mm
1 ceramic nozzle GR7 and GR5
1 long cap and 1 short cap
