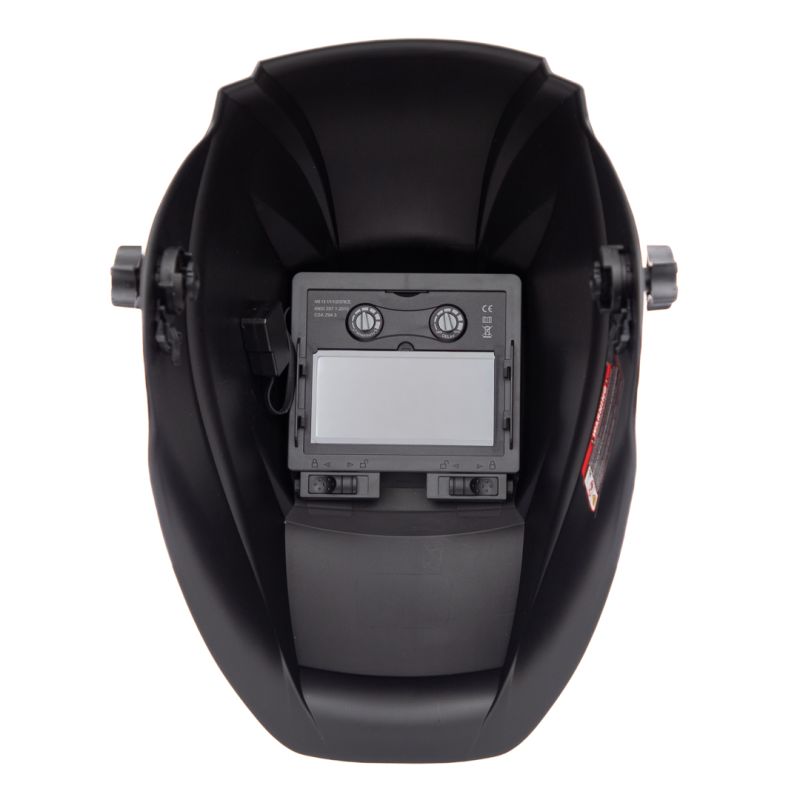

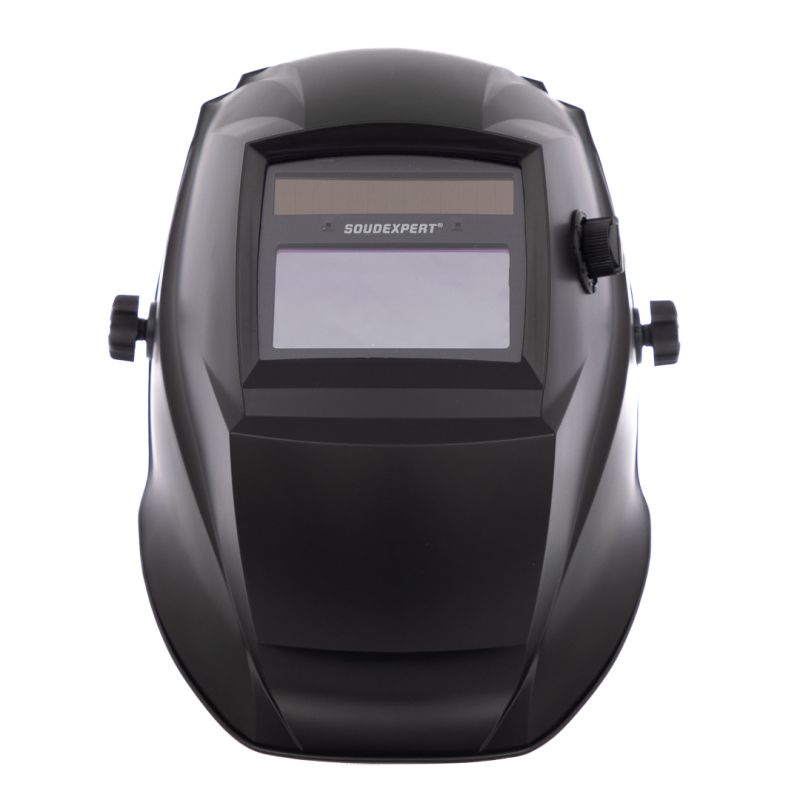

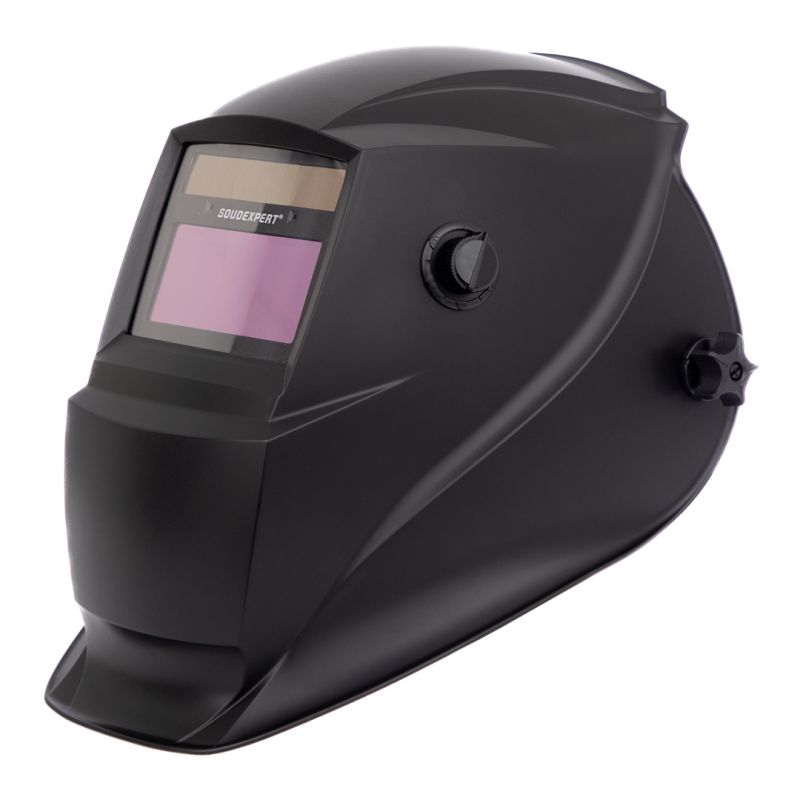

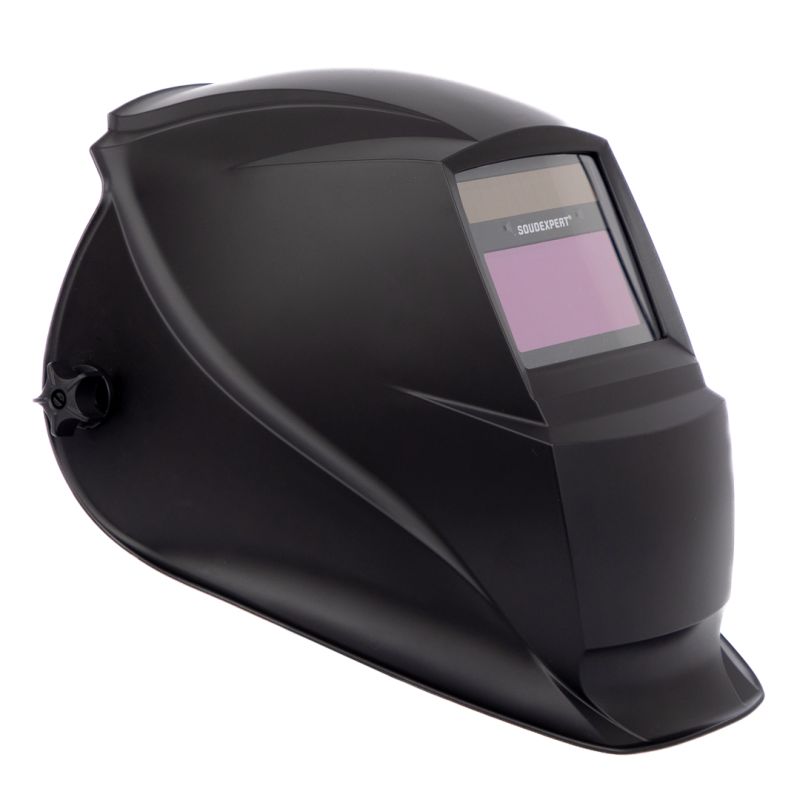

Welding Helmet SOUDEXPERT PRO TC

High-performance automatic welding helmet. Sentinel A60 was designed with enhanced vision in mind.
Viewing area 40% larger than A50 (118 x 71 mm) for a wider view of your work.
Its new ADF offers excellent 1/1/1/1 EN optics from all angles

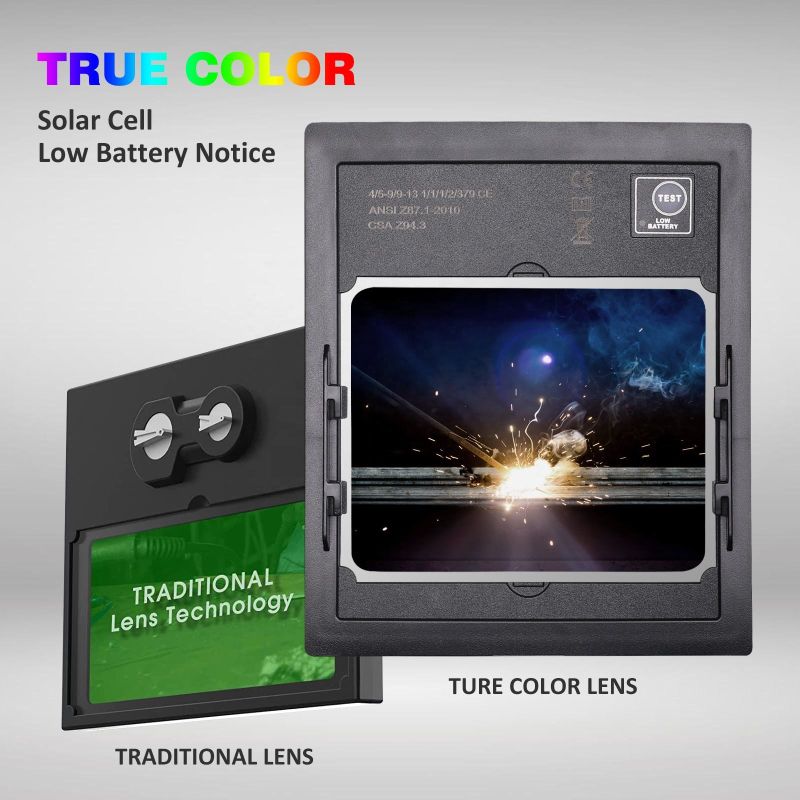

Ultra-clear True-Color lenses to reduce eye fatigue
Shade range from 3/5 to 13 adjustable in half-unit digital increments to optimise vision
4 overactive arc detection sensors for automatic brightness recognition in any work environment
Bright two-colour LED display for easy viewing in low-light conditions
New graphics to adjust sensitivity and delay time
Buttons carefully spaced apart from each other, easy to use even with gloves
ADF with nine programmable memory slots to save and quickly access welding profiles
Esab Sentinel A60 features an external grinding mode button for easy activation
New shade lock function to bypass the ADF and keep the helmet in its darkest state.
2 replaceable CR2450 lithium batteries with solar support
Internal warning indicators for grinding mode, low battery and ADF bypass lock
The signature flip-front design of the Sentinel A60 with infinite adjustment distributes weight
around the head.
Switching time (light to dark): 0.04 ms; switching time (dark to light): 0.1–0.9 s, adjustable

Approvals: CE: EN175, EN379, EN166; ANSI Z87.1; CSA Z94.3; AS/NZS 1337.1, 1338.1; TP TC 019/2011; ISO 16321-1/2

3-year warranty (battery excluded)

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRY BAG.

SACIT PANTERA welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), TIG welding>6 A, flame welding and grinding work.
The Pantera mask is particularly ideal for low-amperage TIG welding (GTAW) and is able to guarantee maximum performance even in the most extreme welding situations.
Large throat and neck protection

Automatically switches to a dark shade in 1/0.08000 of a second.

Sensitivity and intensity adjustment using the buttons located inside the helmet.

Also suitable for eye protection during grinding operations thanks to the "Grinding" position.

Adjustable sensitivity. Protection level DIN 9-13 for MMA-MIG/MAG/TIG welding operations.
Suitable for flame welding thanks to its dual adjustment range DIN 5-8

This helmet features the TRUE COLOR system for more accurate color reproduction, reducing eye fatigue for the welder, as well as the Stand-by/Sleep-Mode system: the filter switches off when brightness is below 1 uA and activates when light intensity exceeds 10 lux.

Operates with a CR2450 battery (included) + solar battery.

Viewing area 100 x 60 mm
Filter dimension: 114 x 133 mm
Optical class 1/1/1/1
Adjustment ranges 4/ 9:13
Number of sensors: 4
Adjustable headband
Weight 590 g
2-year warranty.

This pack includes:

1 Quatro black welding helmet
1 SWISS-AIR respiratory protection system with control panel including half mask + hoses + head and neck strap.
1 blower unit + charger
1 shoulder harness
1 storage bag

This Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for maximum clarity
Weight 600 g
Temperature resistance: Welding helmet 220° and cover lens up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit all head shapes.
Storage bag
Micro USB charging cable
Cover lens
Warranty card.

PAPR connection equipment

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

This pack includes:

1 Panoramax clt black welding helmet
1 SWISS-AIR respiratory protection system with control panel including half mask + tubes + head and neck strap.
1 Blower unit + charger
1 shoulder harness
1 storage bag

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

The Optrel Panoramaxx Quattro welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 350 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-13
Light shade: 3 for grinding work.
Weight: 575 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Clear shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 hard hat adapter
1 headband adjustable in width and length.
Storage bag
2 CR2032 batteries
1 spare outer cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

The Sentinel A60 Air welding helmet builds on the innovations of the standard Sentinel A60, taking welding to the next level. A wide panoramic view and excellent 1/1/1/1 EN optics provide an even wider view of the weld pool without any distortion.

The redesigned auto-darkening filter (ADF) features the new light control technology
with broad-spectrum OpTCS ™ from ESAB. This offers an enhanced True Color vision mode, for less eye fatigue as the working day becomes more demanding. New shade adjustment settings in 0.5 increments allow more precise vision control.

The outer shell retains Sentinel's signature design and integrates a new air diffuser screen.
The fully adjustable Halo ™ internal headband and the external grinding mode button complete the most comfortable and highest-performing lenses ever produced by ESAB.

- ADF viewing area : 118 x 71 mm (4.65 x 2.80 inches)
and intuitive ADF controls, including sensitivity and delay
- Light state range: DIN 3 / 5 – 13, adjustable in 0.5 increments and ADF with adjustable setting
- ESAB OpTCS technology with True Color Lenses
- 9 programmable memory slots
- Arc sensors: 4
- Fast switching time of 0.08 milliseconds - Battery CR2450 replaceable
- Low battery LED, grinding mode LED grinding and shade lock LED

The EPR-X1 respiratory system allows you to adjust the airflow with a simple press of a button, enabling adjustment of the flow through the P3 filter from 170 to 220 litres per minute . The system informs the user of the need to replace the filter by emitting an audible signal. The lithium-ion battery lasts up to 10 hours at 170 l/min.

The ESAB EPR-X1 PAPR unit seamlessly connects to all current ESAB PAPR welding helmets and provides advanced respiratory protection against harmful welding fume particles.

This PAPR is designed for applications ranging from occasional use to full-time industrial applications. The EPR-X1 has a robust and compact structure with a powerful fan to ensure maximum lifespan and performance. Check the battery status, fan settings and filter conditions at a glance thanks to the quick-access LED status indicators. In addition, the PAPR provides audible and vibrating alerts to inform the welder of low airflow (indicating the need to replace the filter) and low battery conditions.

The EPR-X1 turbo unit is controlled by easily accessible buttons with which three airflow speed ranges can be set: 170/190/220 l/minute. The spark arrestor and the two-stage EN12941 TH-3P certified HEPA filter are easily accessible through a removable front door.

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRYING BAG.

Launch offer at -50% on limited quantities (X50)

Automatic welding helmet EXTRA large screen
XXL viewing area: 100x97mm
External controls
Construction: PP
True Color technology: more realistic color rendering
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 1 replaceable CR2450 battery
Low battery alarm and test button
High sensitivity: 4 sensors
Fast darkening speed: 0.08 ms
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/1/1/1
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

This auto-darkening welding helmet features 4 sensors with an integrated grinding screen with anti-fog coating
Operates with 2 CR 2450 lithium batteries. Equipped with a diode indicating the battery level.
Vision area: 75 x 108 mm.
Light/dark switching time: 0.000004 ms
Dark/light switching time: 10 positions from 0.1 to 1 second.
Sensitivity adjustment via digital button: 10 positions.
Adjustable shade from 9 to 13 for welding, from 5 to 8 for cutting.
Suitable for low-amperage TIG welding, microplasma, and oxy-acetylene welding

 Lincoln Electric's exclusive 4C technology liquid crystal display (LCD) increases the spectrum of visible colors. Unlike the traditional auto-darkening filter, 4C® technology broadens the range of visible colors and shades whether the light is diffuse or dark. It eliminates imperfections and color saturation, allowing you to clearly see the material being welded, the arc and the weld pool, while reducing eye fatigue.

3-year warranty.

Optical class 1/1/1/1
Weight 793 g

Supplied with:
5 outer protective lenses
2 inner protective lenses
1 sweatband
1 helmet cover
1 bandana

This sweatband is compatible with GYS welding helmets featuring the following headband models:
- Multifit
- Ergofit
- Multi
- Simple

The GYSMATIC 9/13 AIR TRUE COLOR XL is a welding mask equipped with a powered air purifying respiratory protection system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's airways.

• The XL lens provides an optimal field of view.
• True Color technology ensuring incredible colour accuracy during welding.
• The 5 available shades (9> 13) adapt to all welding operations. It allows TIG welding from as low as 5 A.
• The 4 solar sensors ensure very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to needs (from 170 l/min to 230 l/min).
• The lithium battery provides up to 8 hours of battery life.
• The TH2PRSL rated filter retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter.

Consumables:
- Pre-filter (ref. 038417)
- TH2 filter (ref. 038424)
- TH3 filter (ref. 065734)

Essential for safety, the ALIEN XXL+ TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the darkened state in a fraction of a second, right from arc ignition. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 – True Color technology
Classification: 1/1/1/1
Viewing area: 100 x 90 mm
Reaction time: 0.08 ms
Adjustments: sensitivity, shade, delay
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement protective lenses:
Outer lens 114 x 133 mm ref. 043893
Inner lens 104 x 96 mm ref. 043596
