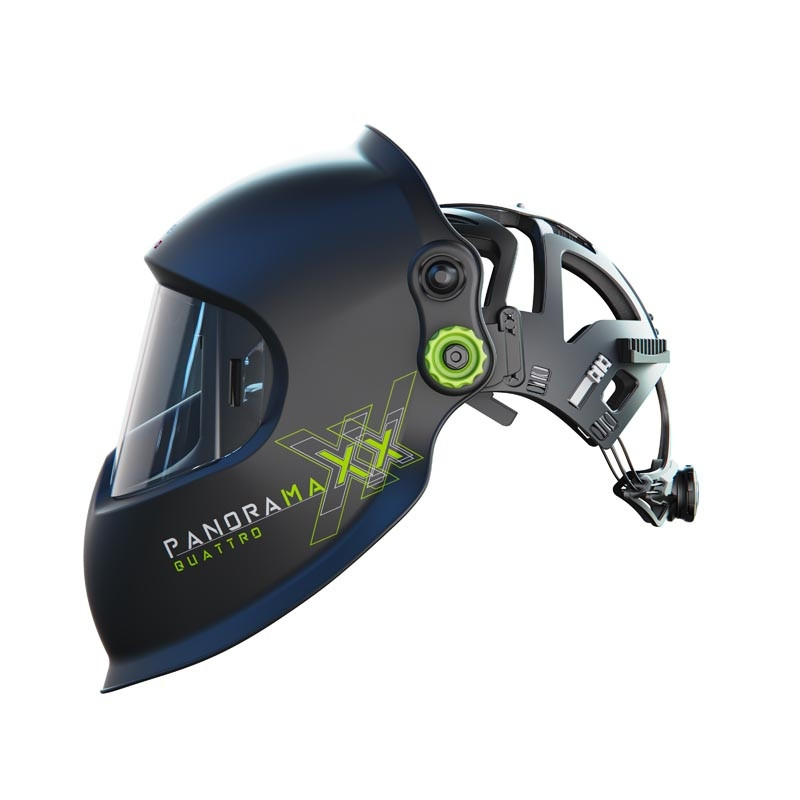

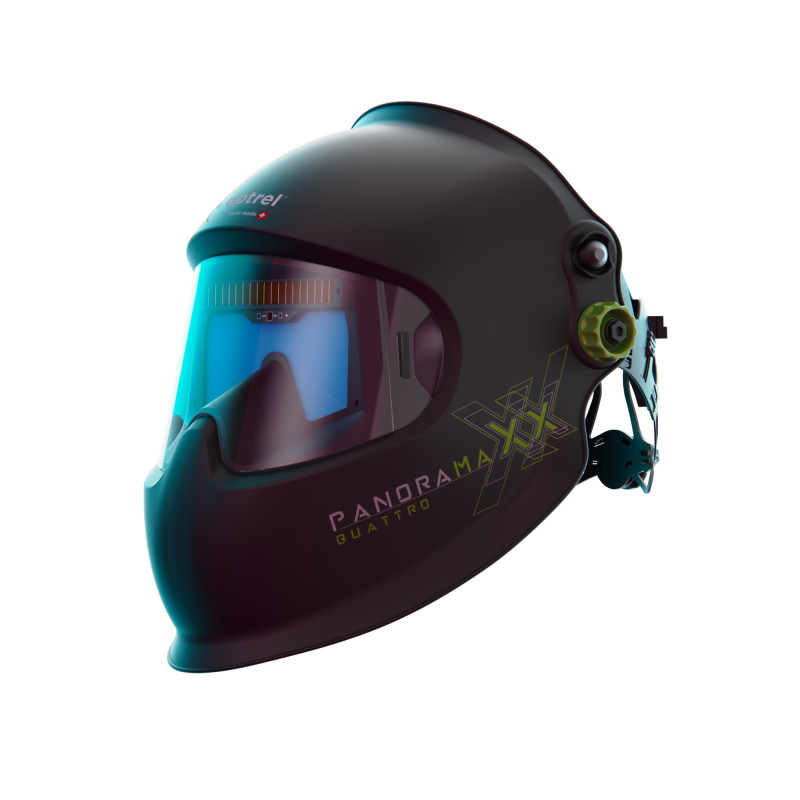

Optrel - Panoramaxx Quattro black welding helmet

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable darkening (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc appears and quickly returns to its transparent state when it stops, eliminating the need to lift and lower the mask at each work break, allowing hands-free operation.
In addition to adjusting the filter sensitivity depending on the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XL viewing area 100 x 67 mm
- 4 sensors
- dark-to-light delay adjustment,
- battery and solar powered,
- transparent glass filter protection.
Optical class 1/1/1/2

This Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for maximum clarity
Weight 600 g
Temperature resistance: Welding helmet 220° and cover lens up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit all head shapes.
Storage bag
Micro USB charging cable
Cover lens
Warranty card.

PAPR connection equipment

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

This Optrel HELIX CLT welding helmet with flip-up lens features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 23°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for very high clarity
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic Panoramic welding helmet
XL viewing area: 100x80mm + Fixed shade 5
Construction: PP
True Color technology
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 2 replaceable CR2450 batteries
Low battery alarm and test button
Number of sensors: 4
Automatically switches from light to dark shade upon arc striking in 0.08 milliseconds
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/2/1/2
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

The GYSMATIC 5/13 AIR TRUE COLOR XXL is a welding mask equipped with a powered air-purifying respirator system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's respiratory tract.

• The XXL screen provides an optimal field of vision.
• True Color technology guaranteeing incredible color accuracy during welding.
• The 9 available shades (5> 13) adapt to all welding operations. It offers the possibility of TIG welding from 2 A.
• The 4 solar sensors guarantee very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to need (from 170 l/min to 230 l/min).
• The lithium battery allows up to 8 hours of autonomy.
• The filter rated TH2PRSL retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with powered air-purifying respirator system, lithium battery, EU charger, harness, flow meter and carry bag.

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Welding helmet suitable for arc welding:

MMA (stick electrode) from 5 to 400 A
MIG-MAG (semi-automatic welding) from 5 to 400 A
TIG from 5 to 300 A

Adjustable shade: DIN 5 to 13; setting 5 to 8 for flame welding and 9 to 13 for arc welding.
Solar powered + 2 CR2450 batteries
Automatically switches from light shade to dark shade upon arc strike in 0.2 ms
Weight: 560 grams.

Viewing field 100 x 67 mm
Number of sensors: 4
Adjustable headband
Grinding position (Grind): the lens remains clear during grinding and cutting work.

Optical classification: 1/1/1/2
Compliant with standards EN 175 / EN 379

SPACEVIEW 3/5-13G AZUR TRUE COLOR XXL WELDING MASK

Essential for safety, the ALIEN XXL+ TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the darkened state in a fraction of a second, right from arc ignition. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 – True Color technology
Classification: 1/1/1/1
Viewing area: 100 x 90 mm
Reaction time: 0.08 ms
Adjustments: sensitivity, shade, delay
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement protective lenses:
Outer lens 114 x 133 mm ref. 043893
Inner lens 104 x 96 mm ref. 043596

The Savage A50 LUX welding helmet adopts the proven performance of the Sentinel A60 welding helmet to deliver True-Color OpTCS rendering at an impeccable EN 1/1/1/1 optical level.
The optoelectronic cell features a simple and intuitive control panel that allows the most critical functions related to all welding types to be controlled: wide shade selection; 5 delay and sensitivity levels.
To complete the versatility of the Savage A50 LUX, a dual 50-lumen LED light is integrated behind the protective lens. The light is powered by its own "AA" battery for a long service life thanks to the integrated arc sensor, which only turns off the lamp when an arc or intense light is detected.
The 5-point adjustable Halo headband of the Savage A50 LUX is the same as the one on the Sentinel A60.

Advanced LED lighting with dedicated arc sensor and
power supply
Easily accessible LED work light power button and separate external grinding button
Optoelectronic cell viewing area: 100 x 60 mm with internally adjustable push-button controls
Shade range: DIN 3/5 – 13
ESAB True-Color OpTCS visor technology
Arc sensors: 4
Fast switching time of 0.07 milliseconds
Replaceable CR2450 battery
Low battery and grinding mode LED indicators

Welding processes
- Oxyfuel cutting
- Plasma cutting
- Grinding
- Welding, GMAW (MIG/MAG)
- Welding, GTAW (TIG)
- Welding, PAW (Plasma welding)
- Welding, SMAW/MMA (coated electrode)

The delivery includes: a complete helmet, 2 replacement inner lenses, 4 replacement outer protective lenses, a carrying bag and a safety
manual.

2 sweatbands are available

Front headband (front of the headband) reference 20-3100V 17
Length 17 cm x 2.5 cm wide.

Rear headband reference 203300V
Length 14 cm x 2.5 cm wide

Essential for safety, the PANORAMIC 3 XL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared, and spatter. Fully automatic, the mask switches from clear to shaded state in a fraction of a second, from the moment the arc is struck. Delivered with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 4 to 12 - True Color Technology
Classification: 1/1/1/1
Viewing area: 131 x 84 mm + 2x (67 x 75 mm) – Panoramic vision
Reaction time: 0.15 ms
Adjustments: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 610 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:
Outer lens 385 x 150 mm (ref. 037311)
Panoramic inner lens (ref. 037304)

SACIT PANTERA welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), TIG welding>6 A, flame welding and grinding work.
The Pantera mask is particularly ideal for low-amperage TIG welding (GTAW) and is able to guarantee maximum performance even in the most extreme welding situations.
Large throat and neck protection

Automatically switches to a dark shade in 1/0.08000 of a second.

Sensitivity and intensity adjustment using the buttons located inside the helmet.

Also suitable for eye protection during grinding operations thanks to the "Grinding" position.

Adjustable sensitivity. Protection level DIN 9-13 for MMA-MIG/MAG/TIG welding operations.
Suitable for flame welding thanks to its dual adjustment range DIN 5-8

This helmet features the TRUE COLOR system for more accurate color reproduction, reducing eye fatigue for the welder, as well as the Stand-by/Sleep-Mode system: the filter switches off when brightness is below 1 uA and activates when light intensity exceeds 10 lux.

Operates with a CR2450 battery (included) + solar battery.

Viewing area 100 x 60 mm
Filter dimension: 114 x 133 mm
Optical class 1/1/1/1
Adjustment ranges 4/ 9:13
Number of sensors: 4
Adjustable headband
Weight 590 g
2-year warranty.
