Three-phase MMA / TIG DC Lift generator
Duty cycle: 300A @ 60%
Current range: 20 - 300 A (400V)
Welds cellulosic, aluminium, rutile, basic, stainless steel, cast iron electrodes up to Ø 6 mm
Arc gouging with carbon electrode (up to Ø 5 mm)

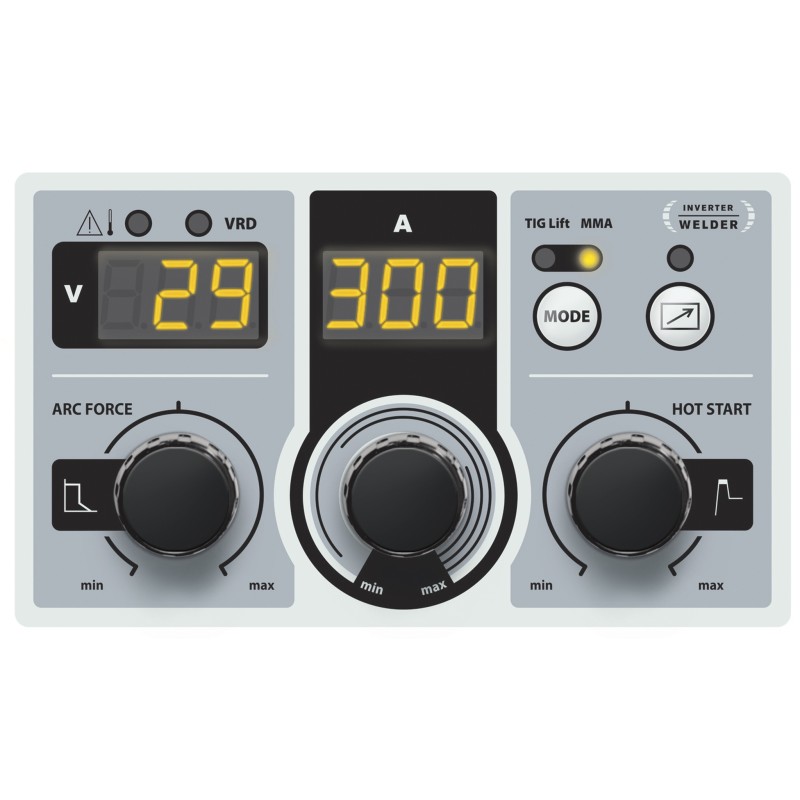

Robust and easy to adjust with digital display
IP23 for outdoor use
Reinforced housing
Technologies: Arc Force, Hot Start, Anti Stick, SR and VRD
Open circuit voltage 83V
Weight: 26kg
2-year warranty
Delivered without accessories
987,50 € tax excl.
Three-phase MMA / TIG DC Lift generator
Duty cycle: 300A @ 60%
Current range: 20 - 300 A (400V)
Welds cellulosic, aluminium, rutile, basic, stainless steel, cast iron electrodes up to Ø 6 mm
Arc gouging with carbon electrode (up to Ø 5 mm)
Robust and easy to adjust with digital display
IP23 for outdoor use
Reinforced housing
Technologies: Arc Force, Hot Start, Anti Stick, SR and VRD
Open circuit voltage 83V
Weight: 26kg
2-year warranty
Delivered without accessories
Description

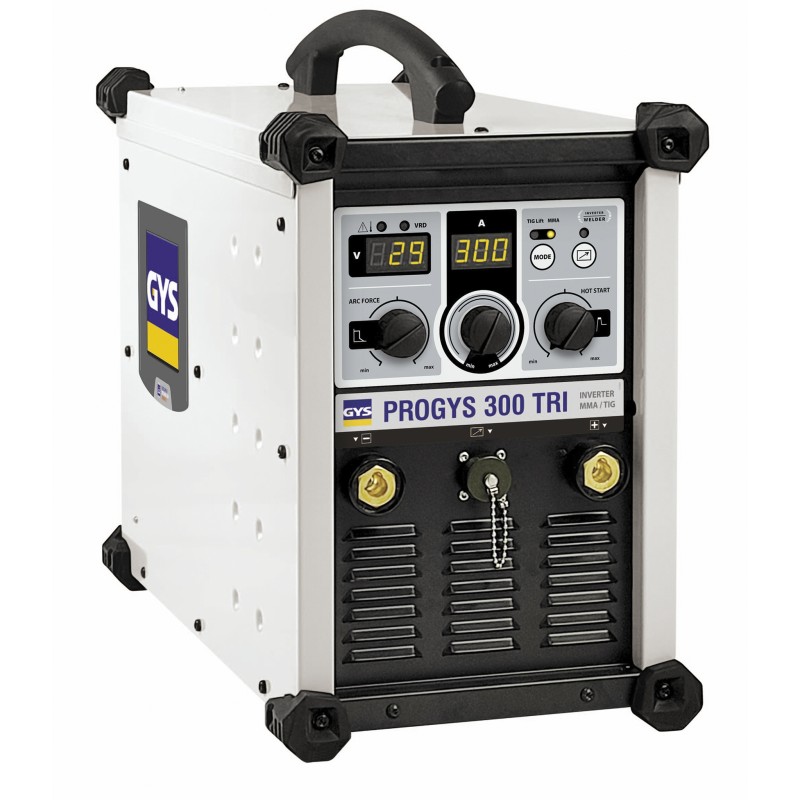

The PROGYS 300 TRI is a three-phase MMA / TIG DC generator designed to meet the highest demands of professionals and challenging industrial environments. Equipped with reinforced electronics and a VRD safety device, it guarantees optimal welding performance, even in hostile or hazardous environments.
Technical specifications – MMA process
Current range: 20 to 300 A
Duty cycle: 60% at 300 A (at 40°C)
Compatible electrodes: Rutile, Basic, Stainless steel, Cast iron, Aluminium and Cellulosic (up to Ø 6 mm)
Arc gouging function: carbon electrodes up to Ø 5 mm
Adjustable welding aids:
Hot Start (facilitated arc striking)
Arc Force (arc maintenance in difficult conditions)
Anti-Sticking (sticking prevention)
TIG DC (Lift) process
Current range: 20 to 300 A
Lift arc striking: ideal for finishing work without HF
Real-time display: current and voltage visible during welding
Safety & robustness
VRD (Voltage Reduction Device): reduces the open circuit voltage to 20 V for added safety in ATEX zones (internally activatable)
IP23 protection level: designed for outdoor use
Three-phase power supply 400 V – 20 A
Delivery & accessories
Delivered without accessories
Accessories available as options:
Electrode holder
Earth clamp
Remote control RC-HA1 (ref. 045675)
Ideal for:
Industrial environments
Heavy maintenance
High-demand job sites
Intensive welding work (MMA & TIG)
The PROGYS 300 TRI guarantees powerful, reliable and safe welding for the most demanding professionals
Characteristics of PROGYS 300 Tri welding machine
| Supply voltage (in Volts) | 2 ph 400 V | MMA power range (in Amperes) | 20 - 250 A |
| Duty cycle at 40°C MMA | 300A @60% - 230A @100% | Possible electrode type | Rutile - stainless steel-cast iron-basic-aluminium-cellulosic |
| Ventilated | Yes | Generator compatible | Yes |
| Welding process | MMA / TIG LIFT | Warranty | 2 years |
| Dimensions (in mm) | 570 X 300 X 490 | Weight in kg | 27.2 |
| Protection rating | IP23 | Suggested generator power | 10 kW - 12 kVA |
| Usage | Industry Professional |
TIG ignition type | TIG Lift |
| Function | Gouging | Max MMA Power | 300 A Max |
€122.00
€198.25
€215.54
€350.75
€249.09
Rod - MMA welding electrodes
Expert advice for professionals and individuals
Benefit from the support of specialists, whatever your profile.
Secure payment
Your transactions are protected by the latest security technologies.
Express delivery in 24/48 h
Fast dispatch to France, Europe and overseas territories upon confirmation of your order.
Best price guaranteed
Enjoy the most competitive prices on the market all year round.
Supplier stock
ESAB
Reference: 0700500250
€1,621.59
1 329,17 € tax excl.
or 4 x 405,40 €
Free delivery
2-year warranty
MMA and TIG welding
Special 6010 mode for controlling cellulosic electrodes
Maximum power: 250A at 40%
Welding current 10-250 A
Power supply 400 V three-phase
Open circuit voltage 81 VDC
Protection class: IP23S
Dimensions: 477 x 188 x 360 mm
Supplied with 3m ground cable, 3m electrode holder and 2.5m power cable (without plug)
Supplier stock
ESAB
Reference: 0447100881
€2,433.90
€2,704.34
1 995,00 € tax excl.
or 4 x 608,48 €
Free delivery
2-year warranty
MMA and TIG welding + DC gouging
Maximum power: 400A at 60% and 310 A at 100%
Welding current 10-410 A
Power supply 400 V three-phase
Protection class: IP23S
Dimensions: 525 x 280 x 475 mm - Weight 35kg
In stock
Telwin
Reference: 816039
€808.25
€898.05
662,50 € tax excl.
or 4 x 202,06 €
Free delivery
2-year warranty
Key features of the Telwin Superior 250 Tri welding machine:
High efficiency: 220A @25%
Welds rutile, basic, stainless steel and cast iron electrodes
Compact and lightweight (8.4 kg)
Robust and easy to adjust with potentiometer
Two welding processes: MMA / Lift Contact
Current range: 10 - 250 A
Technologies: Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
Delivered without accessories
Supplier stock
Lincoln Electric
Reference: K14242-1
€2,490.83
€2,767.59
2 041,67 € tax excl.
or 4 x 622,71 €
Free delivery
2-year warranty
Duty cycle 270A @ 25%
400V ±15%, 3Ph 50/60Hz
Generator compatible
Lightweight: only 14.3 kg
Low standby power consumption below 19W and efficiency>85%
Manual and synergic MMA – Pulsed
Fan on demand (Intelligent F.A.N.)
VRD (Voltage Reduce Device)
Ability to weld cellulosic electrodes
3-year warranty
Supplier stock
Telwin
Reference: 816156
€2,028.25
€2,535.32
1 662,50 € tax excl.
or 4 x 507,06 €
Free delivery
2-year warranty

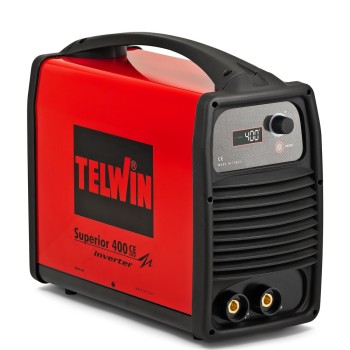

Key features of the Telwin Superior 400 CE VRD welding machine:
Gouging function
Duty cycle: 400A @40%
Welds carbon cellulosic, aluminium, rutile, basic, stainless steel and cast iron electrodes
Robust and easy to set up with its digital display
Two welding processes: MMA / Lift TIG
Current range: 10 - 270 A (400V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
Supplier stock
Telwin
Reference: 816036
€1,568.71
1 285,83 € tax excl.
or 4 x 392,18 €
Free delivery
2-year warranty

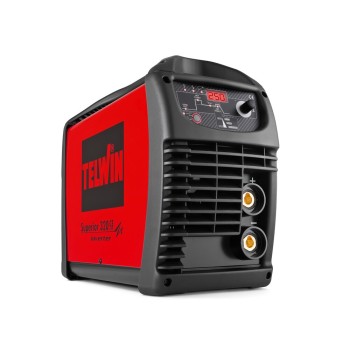

The advantages of the Telwin Superior 320 CE VRD welding machine:
