Duty cycle 270A @ 25%
400V ±15%, 3Ph 50/60Hz
Generator compatible
Lightweight: only 14.3 kg
Low standby power consumption below 19W and efficiency>85%
Manual and synergic MMA – Pulsed
Fan on demand (Intelligent F.A.N.)
VRD (Voltage Reduce Device)
Ability to weld cellulosic electrodes
3-year warranty
2 041,67 € tax excl.
Duty cycle 270A @ 25%
400V ±15%, 3Ph 50/60Hz
Generator compatible
Lightweight: only 14.3 kg
Low standby power consumption below 19W and efficiency>85%
Manual and synergic MMA – Pulsed
Fan on demand (Intelligent F.A.N.)
VRD (Voltage Reduce Device)
Ability to weld cellulosic electrodes
3-year warranty
Description

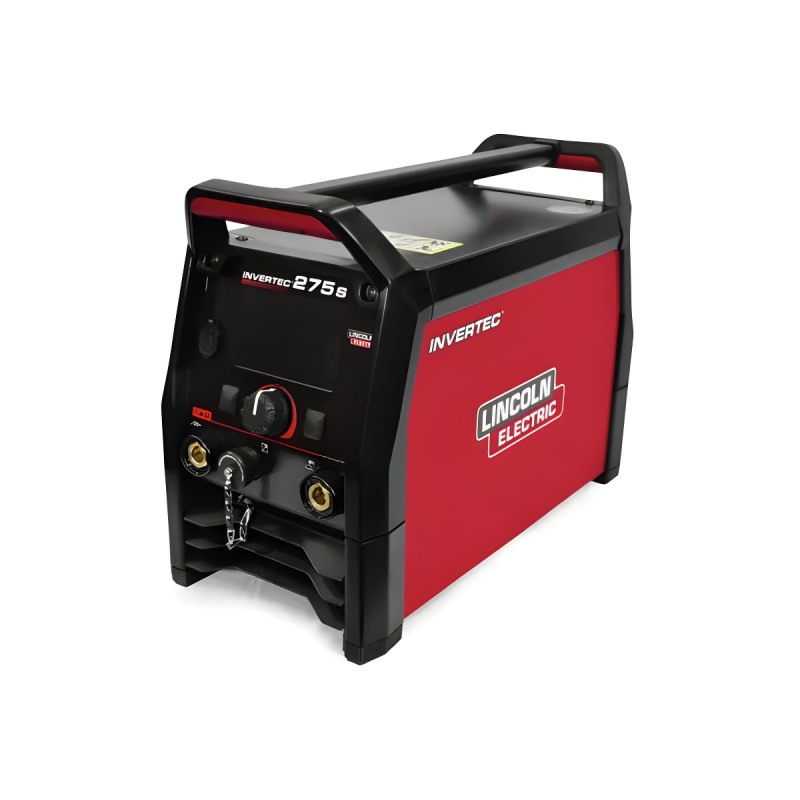

The INVERTEC® 275S is a next-generation MMA inverter that marks a new step towards the future of professional welding, offering superior welding quality and high-performance processes that increase productivity.
The new INVERTEC® 275S is designed with the latest energy-saving technologies and withstands extreme climatic conditions thanks to its unique design. To achieve exceptional welding performance, the INVERTEC® 275S is based on a digital communication system and integrated communication tools such as USB, enabling precise traceability and monitoring of your welding activities.
Processes: MMA (manual and synergic + Pulsed) and TIG Lift.
Possible welding:
Materials • Unalloyed steel • Stainless steel • Low-alloy steel • Aluminium alloys • Nickel alloys • Titanium alloys
Applications
• General fabrication • Heavy fabrication • Infrastructure • Transportation • Chemical industry • Maintenance and repair • Shipbuilding
The product complies with standard EN50504 and EN60974-14 (calibration). The operator can perform self-calibration.
Included with purchase:
• Power cable 3 m (without plug)
• User manual on USB key
Characteristics of LINCOLN - 275S | MMA INVERTEC welding machine
| Supply voltage (in Volts) | 400 V -3Ph -50/60 Hz | Fuse (in Amperes) | 16 A |
| MMA power range (in Amperes) | 5 - 270 A | Duty cycle at 40°C MMA | 250 A@35% - 230 A@60% - 180A@100% |
| Open circuit voltage (in Volts) | 74 V | Possible electrode type | Rutile - basic |
| Usable rutile electrode diameter (Ø) for the unit (in mm) | From 1.6 to 6 mm | Ø basic electrode usable by the unit (in mm) | 2 to 6 mm |
| Usable Tungsten electrode diameter (Ø) | 1.6 to 4 mm | Nature of materials to be TIG welded | steel, stainless steel, copper, cast iron, titanium, nickel |
| Ventilated | Yes | Nature of materials to be MMA welded | Steel - Stainless steel - Cast iron - Aluminum |
| Generator compatible | Yes | Welding process | MMA / TIG LIFT |
| Warranty | 3 years | Dimensions (in mm) | 360 X 230 X 498 |
| Weight in kg | 14,3 | Protection rating | IP23 |
| Usage | Industry Industry |
TIG ignition type | TIG Lift |
| Pulse function | yes | Gouging Mode | No |
| Max MMA Power | 300 A Max |
€215.54
€188.09
€167.75
€526.64
TIG welding Tungsten electrode
Rod - MMA welding electrodes
TIG welding filler metal
Excellent welding machine, very efficient.
9/10
Expert advice for professionals and individuals
Benefit from the support of specialists, whatever your profile.
Secure payment
Your transactions are protected by the latest security technologies.
Express delivery in 24/48 h
Fast dispatch to France, Europe and overseas territories upon confirmation of your order.
Best price guaranteed
Enjoy the most competitive prices on the market all year round.
Supplier stock
Gys
Reference: 082762
€1,204.75
987,50 € tax excl.
or 4 x 301,19 €
Free delivery
2-year warranty

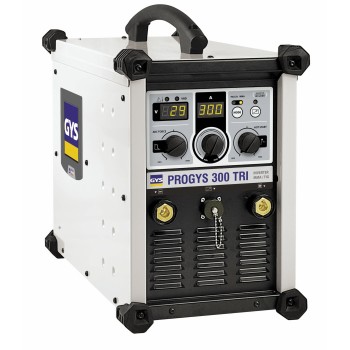

Three-phase MMA / TIG DC Lift generator
Duty cycle: 300A @ 60%
Current range: 20 - 300 A (400V)
Welds cellulosic, aluminium, rutile, basic, stainless steel, cast iron electrodes up to Ø 6 mm
Arc gouging with carbon electrode (up to Ø 5 mm)
Robust and easy to adjust with digital display
IP23 for outdoor use
Reinforced housing
Technologies: Arc Force, Hot Start, Anti Stick, SR and VRD
Open circuit voltage 83V
Weight: 26kg
2-year warranty
Delivered without accessories
Supplier stock
ESAB
Reference: 0700500250
€1,621.59
1 329,17 € tax excl.
or 4 x 405,40 €
Free delivery
2-year warranty
MMA and TIG welding
Special 6010 mode for controlling cellulosic electrodes
Maximum power: 250A at 40%
Welding current 10-250 A
Power supply 400 V three-phase
Open circuit voltage 81 VDC
Protection class: IP23S
Dimensions: 477 x 188 x 360 mm
Supplied with 3m ground cable, 3m electrode holder and 2.5m power cable (without plug)
In stock
Telwin
Reference: 816039
€808.25
€898.05
662,50 € tax excl.
or 4 x 202,06 €
Free delivery
2-year warranty
Key features of the Telwin Superior 250 Tri welding machine:
High efficiency: 220A @25%
Welds rutile, basic, stainless steel and cast iron electrodes
Compact and lightweight (8.4 kg)
Robust and easy to adjust with potentiometer
Two welding processes: MMA / Lift Contact
Current range: 10 - 250 A
Technologies: Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
Delivered without accessories
Supplier stock
ESAB
Reference: 0447100881
€2,433.90
€2,704.34
1 995,00 € tax excl.
or 4 x 608,48 €
Free delivery
2-year warranty
MMA and TIG welding + DC gouging
Maximum power: 400A at 60% and 310 A at 100%
Welding current 10-410 A
Power supply 400 V three-phase
Protection class: IP23S
Dimensions: 525 x 280 x 475 mm - Weight 35kg
Supplier stock
Telwin
Reference: 816036
€1,568.71
1 285,83 € tax excl.
or 4 x 392,18 €
Free delivery
2-year warranty
The advantages of the Telwin Superior 320 CE VRD welding machine:
Duty cycle: 270A @35%
Welds cellulosic, aluminium, rutile, basic, stainless steel, cast iron electrodes
Robust and easy to adjust with its digital display
Two welding processes: VRD / MMA / Lift TIG
Current range: 10 - 270 A (400V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
Delivered without accessories
Supplier stock
Telwin
Reference: 816156
€2,028.25
€2,535.32
1 662,50 € tax excl.
or 4 x 507,06 €
Free delivery
2-year warranty
Key features of the Telwin Superior 400 CE VRD welding machine:
Gouging function
Duty cycle: 400A @40%
Welds carbon cellulosic, aluminium, rutile, basic, stainless steel and cast iron electrodes
Robust and easy to set up with its digital display
Two welding processes: MMA / Lift TIG
Current range: 10 - 270 A (400V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
