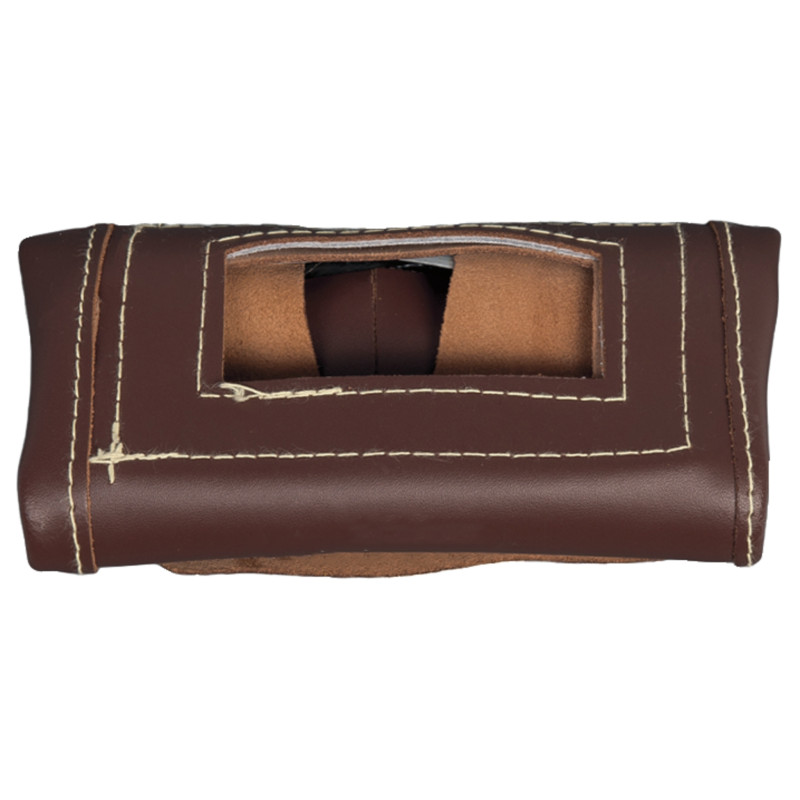

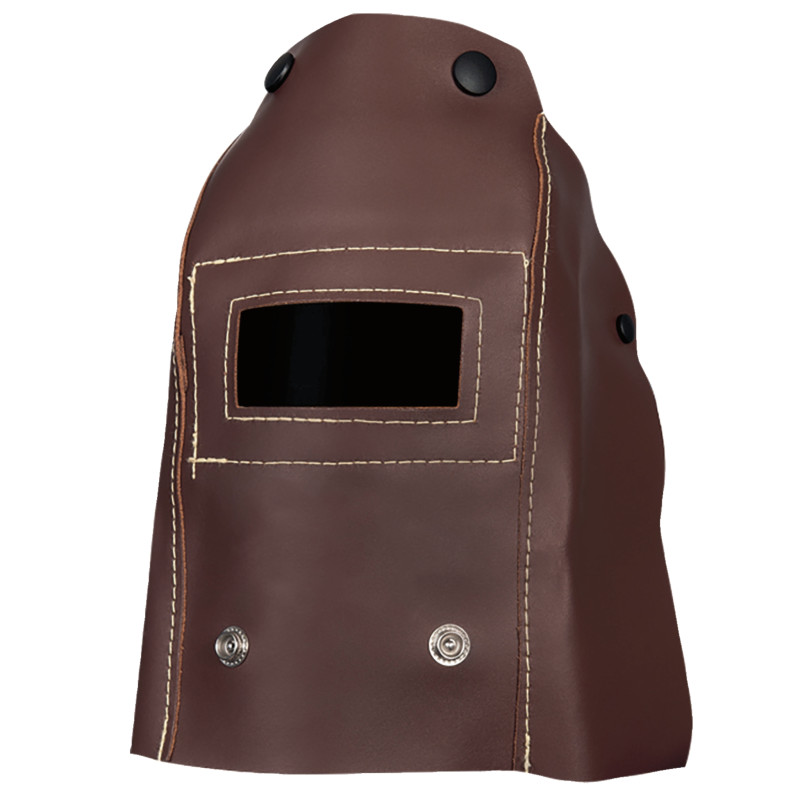

Fold-flat welding mask

Essential for safety, the PANORAMIC 3 XL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared, and spatter. Fully automatic, the mask switches from clear to shaded state in a fraction of a second, from the moment the arc is struck. Delivered with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 4 to 12 - True Color Technology
Classification: 1/1/1/1
Viewing area: 131 x 84 mm + 2x (67 x 75 mm) – Panoramic vision
Reaction time: 0.15 ms
Adjustments: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 610 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:
Outer lens 385 x 150 mm (ref. 037311)
Panoramic inner lens (ref. 037304)

Automatic darkening welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable shade control (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter darkens automatically when the welding arc appears and quickly returns to a transparent state when it stops, eliminating the need to raise and lower the mask at each work pause and thus allowing hands-free operation.
In addition to adjusting the filter sensitivity according to the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XXL viewing area, 100 x 93 mm
- 4 sensors,
- dark-to-light delay adjustment,
- battery and solar powered,
- clear glass filter protection.
Optical class 1/1/1/2

This welding mask requires two CR2032 batteries during use (included at the time of sale)

Essential for safety, the ALIEN XXL+ TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the darkened state in a fraction of a second, right from arc ignition. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 – True Color technology
Classification: 1/1/1/1
Viewing area: 100 x 90 mm
Reaction time: 0.08 ms
Adjustments: sensitivity, shade, delay
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement protective lenses:
Outer lens 114 x 133 mm ref. 043893
Inner lens 104 x 96 mm ref. 043596

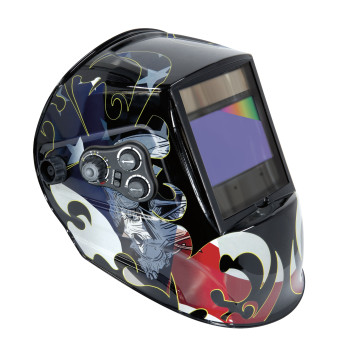

LCD WELDING MASK ERGOTECH DREAM
Essential for safety, the ERGOTECH 5-9/9-13 optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from clear to dark state in a fraction of a second, from the moment the arc is struck. Supplied with a Multifit + headband, it frees the welder's hands and provides all the comfort needed for welding work.
This welding helmet features TRUE COLOR technology

UV/IR protection level: DIN 15
Clear shade: 3
Shade: adjustable from 5-9 and 9-13 13
Classification: 1/1/1/1
Field of view: 100 x 67 mm
Reaction time: 0.08 ms
Number of sensors: 4
Return to clear time 0.15>0.8 sec
Adjustments: sensitivity, shade tester, delay, grinding
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379


Applications
MMA: 5 to 400 A
TIG: 5 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement lenses:
Outer lens 114 x 133 mm (ref. 043893)
Inner lens 103.7 x 69.5 mm (ref. 043695)

Launch offer at -50% on limited quantities (X50)

Automatic welding helmet EXTRA large screen
XXL viewing area: 100x97mm
External controls
Construction: PP
True Color technology: more realistic color rendering
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 1 replaceable CR2450 battery
Low battery alarm and test button
High sensitivity: 4 sensors
Fast darkening speed: 0.08 ms
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/1/1/1
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic wide-screen welding helmet Black colour XL field of view: 100x50mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 2 replaceable CR2450 batteries Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

This pack includes:

1 Quatro black welding helmet
1 SWISS-AIR respiratory protection system with control panel including half mask + hoses + head and neck strap.
1 blower unit + charger
1 shoulder harness
1 storage bag

The Sentinel A60 Air welding helmet builds on the innovations of the standard Sentinel A60, taking welding to the next level. A wide panoramic view and excellent 1/1/1/1 EN optics provide an even wider view of the weld pool without any distortion.

The redesigned auto-darkening filter (ADF) features the new light control technology
with broad-spectrum OpTCS ™ from ESAB. This offers an enhanced True Color vision mode, for less eye fatigue as the working day becomes more demanding. New shade adjustment settings in 0.5 increments allow more precise vision control.

The outer shell retains Sentinel's signature design and integrates a new air diffuser screen.
The fully adjustable Halo ™ internal headband and the external grinding mode button complete the most comfortable and highest-performing lenses ever produced by ESAB.

- ADF viewing area : 118 x 71 mm (4.65 x 2.80 inches)
and intuitive ADF controls, including sensitivity and delay
- Light state range: DIN 3 / 5 – 13, adjustable in 0.5 increments and ADF with adjustable setting
- ESAB OpTCS technology with True Color Lenses
- 9 programmable memory slots
- Arc sensors: 4
- Fast switching time of 0.08 milliseconds - Battery CR2450 replaceable
- Low battery LED, grinding mode LED grinding and shade lock LED

The EPR-X1 respiratory system allows you to adjust the airflow with a simple press of a button, enabling adjustment of the flow through the P3 filter from 170 to 220 litres per minute . The system informs the user of the need to replace the filter by emitting an audible signal. The lithium-ion battery lasts up to 10 hours at 170 l/min.

The ESAB EPR-X1 PAPR unit seamlessly connects to all current ESAB PAPR welding helmets and provides advanced respiratory protection against harmful welding fume particles.

This PAPR is designed for applications ranging from occasional use to full-time industrial applications. The EPR-X1 has a robust and compact structure with a powerful fan to ensure maximum lifespan and performance. Check the battery status, fan settings and filter conditions at a glance thanks to the quick-access LED status indicators. In addition, the PAPR provides audible and vibrating alerts to inform the welder of low airflow (indicating the need to replace the filter) and low battery conditions.

The EPR-X1 turbo unit is controlled by easily accessible buttons with which three airflow speed ranges can be set: 170/190/220 l/minute. The spark arrestor and the two-stage EN12941 TH-3P certified HEPA filter are easily accessible through a removable front door.

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRYING BAG.

High-performance automatic welding helmet. Sentinel A60 was designed with enhanced vision in mind.
Viewing area 40% larger than A50 (118 x 71 mm) for a wider view of your work.
Its new ADF offers excellent 1/1/1/1 EN optics from all angles
Ultra-clear True-Color lenses to reduce eye fatigue
Shade range from 3/5 to 13 adjustable in half-unit digital increments to optimise vision
4 overactive arc detection sensors for automatic brightness recognition in any work environment
Bright two-colour LED display for easy viewing in low-light conditions
New graphics to adjust sensitivity and delay time
Buttons carefully spaced apart from each other, easy to use even with gloves
ADF with nine programmable memory slots to save and quickly access welding profiles
Esab Sentinel A60 features an external grinding mode button for easy activation
New shade lock function to bypass the ADF and keep the helmet in its darkest state.
2 replaceable CR2450 lithium batteries with solar support
Internal warning indicators for grinding mode, low battery and ADF bypass lock
The signature flip-front design of the Sentinel A60 with infinite adjustment distributes weight
around the head.
Switching time (light to dark): 0.04 ms; switching time (dark to light): 0.1–0.9 s, adjustable

Approvals: CE: EN175, EN379, EN166; ANSI Z87.1; CSA Z94.3; AS/NZS 1337.1, 1338.1; TP TC 019/2011; ISO 16321-1/2

3-year warranty (battery excluded)

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRY BAG.

This Optrel HELIX CLT welding helmet with flip-up lens features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 23°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for very high clarity
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

This sweatband is compatible with GYS welding helmets featuring the following headband models:
- Multifit
- Ergofit
- Multi
- Simple

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

The Savage A50 LUX welding helmet adopts the proven performance of the Sentinel A60 welding helmet to deliver True-Color OpTCS rendering at an impeccable EN 1/1/1/1 optical level.
The optoelectronic cell features a simple and intuitive control panel that allows the most critical functions related to all welding types to be controlled: wide shade selection; 5 delay and sensitivity levels.
To complete the versatility of the Savage A50 LUX, a dual 50-lumen LED light is integrated behind the protective lens. The light is powered by its own "AA" battery for a long service life thanks to the integrated arc sensor, which only turns off the lamp when an arc or intense light is detected.
The 5-point adjustable Halo headband of the Savage A50 LUX is the same as the one on the Sentinel A60.

Advanced LED lighting with dedicated arc sensor and
power supply
Easily accessible LED work light power button and separate external grinding button
Optoelectronic cell viewing area: 100 x 60 mm with internally adjustable push-button controls
Shade range: DIN 3/5 – 13
ESAB True-Color OpTCS visor technology
Arc sensors: 4
Fast switching time of 0.07 milliseconds
Replaceable CR2450 battery
Low battery and grinding mode LED indicators

Welding processes
- Oxyfuel cutting
- Plasma cutting
- Grinding
- Welding, GMAW (MIG/MAG)
- Welding, GTAW (TIG)
- Welding, PAW (Plasma welding)
- Welding, SMAW/MMA (coated electrode)

The delivery includes: a complete helmet, 2 replacement inner lenses, 4 replacement outer protective lenses, a carrying bag and a safety
manual.
