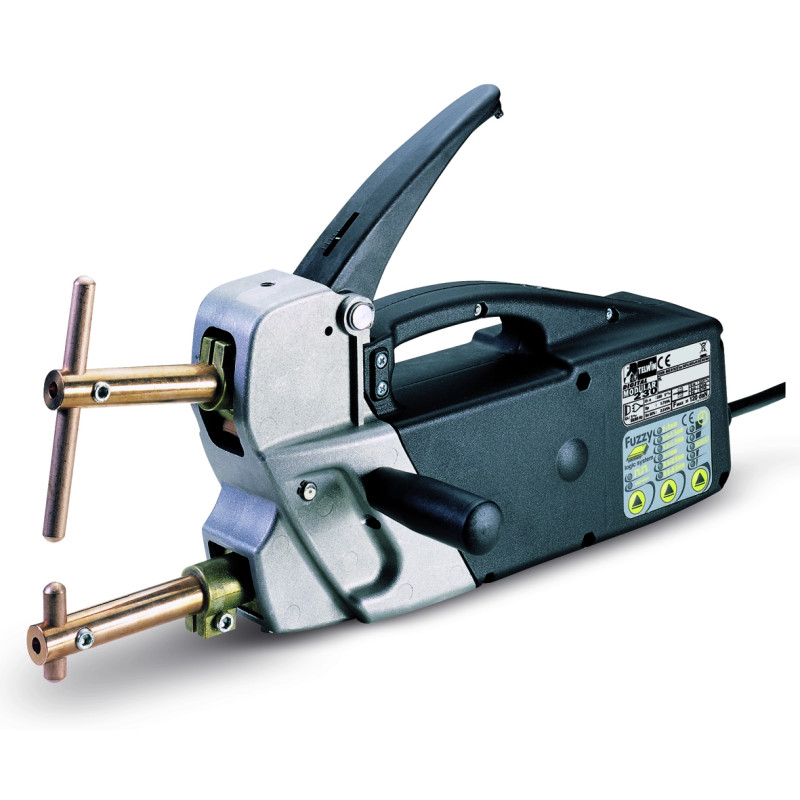

TELWIN - Modular 400 three-phase | Spot welder

This spot welding system is the tool for assembling thin sheets of mild steel or stainless steel such as metal furniture or automotive restoration and repair
The multifunction digital display allows automatic regulation of the spot welding parameters depending on the tool selected and the sheet thickness
This unit enables individual and continuous welding of steel sheets, stainless steel, and galvanized sheets in pulsed mode
With the optional studder kit reference 802833, it enables spot welding of screws, washers, nails, rivets, washer spot welding and pulling, and intermittent spot welding
Automatic control of the mounted tool and voltage
It allows the assembly of sheets up to a thickness of 3.0 + 3.0 mm
The spot welding mode is continuous or pulsed depending on the type of sheet
It features an adjustable clamping force on the arm and a thermally insulating material handle
Single-phase 400 V power supply with a 32 A fuse socket
Supplied with a pneumatic clamp with air cooling and the standard 120 mm arm

The CAPATEK 66 FV is an industrial capacitor discharge stud welder with drawback, capable of welding studs from M3 to M8 in copper-coated steel, stainless steel, aluminum and brass onto thin sheet metal without marks or deformation. Its ergonomic and revolutionary gun with adjustable drawback and force ensures an ultra-fast welding rate. Its "FV" technology allows it to be used on all single-phase networks (85 to 265 V).

MAXIMUM PRODUCTIVITY

66 mF capacitor discharge.
Recharge time from 0 to 5 s.
Wide choice of studs, from M3 to M8.
Compatible stud length: 6 to 40 mm.

CONTACT GUN

Adjustable force from 25 to 100 N with cover to prevent accidental adjustments.
Independent tripod design with bayonet locking for better gun stability during welding and to facilitate mandrel installation
Trigger for easy control of the welding action.
LED lighting for the welding area. Unique on the market, several functions:
- Fast LED flash: error, machine under load.
- Slow LED flash: preset stud count reached.

INTUITIVE INTERFACE

Voltage adjustment from 50 V to 200 V.
Settings lock.
Stud counter with adjustable threshold (incremental or decremental).

INDUSTRIAL DESIGN

Protected against overvoltages up to 400 V (PROTEC 400)
Reinforced casing with anti-shock pads on all external faces
Easy welding polarity change via 35/50 bayonet connector
Delivered with two split earth clamps to prevent magnetic arc blow effects
Handle with integrated mains cable winder
Automatic standby mode
ON/OFF switch located at the rear of the machine
Active ventilation as needed

This portable spot welding system is the ideal tool for assembling thin mild steel sheets such as metal furniture or vehicle restoration
Thanks to the selection of the thickness of the sheets to be assembled, the portaspot defines the optimal current and spotting time. You can also manually adjust this spotting time

It allows the assembly of sheets from 0.6 + 0.6 mm up to 2.0 + 2.0 mm
The spotting mode is continuous or pulsed depending on the type of sheets

It features a clamping force adjustment on the arm and a handle made of thermal insulating material
Its power supply is single-phase 230 V and requires for its operation an electrical line controlled by a 25A fuse
Supplied with the standard 120 mm arm
Welder weight: 10.5 kg
The arms of this unit have a diameter of 20 mm and the electrodes a diameter of 12 mm
Supplied without power plug
