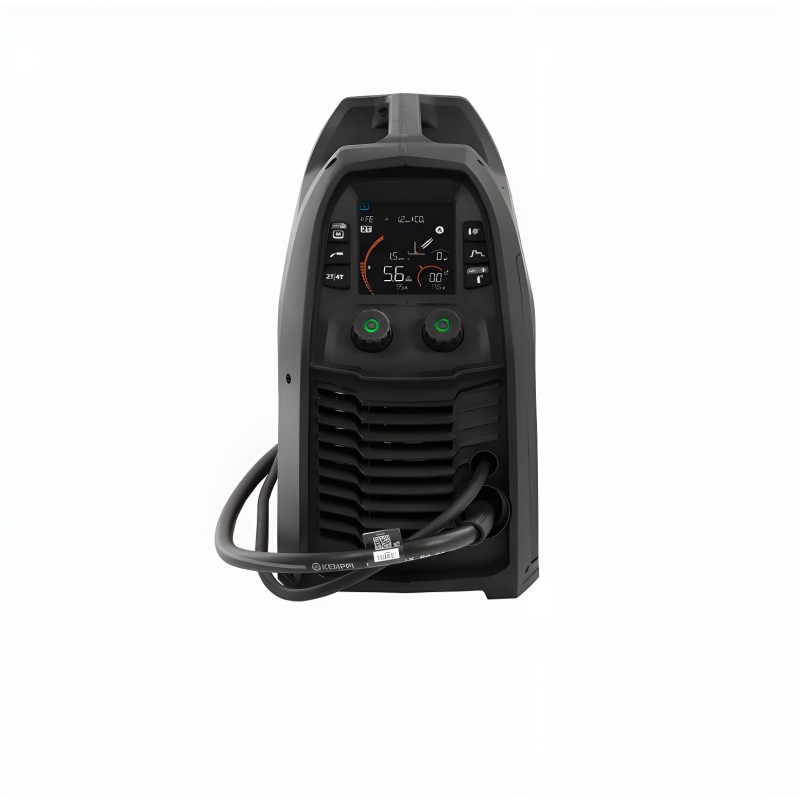

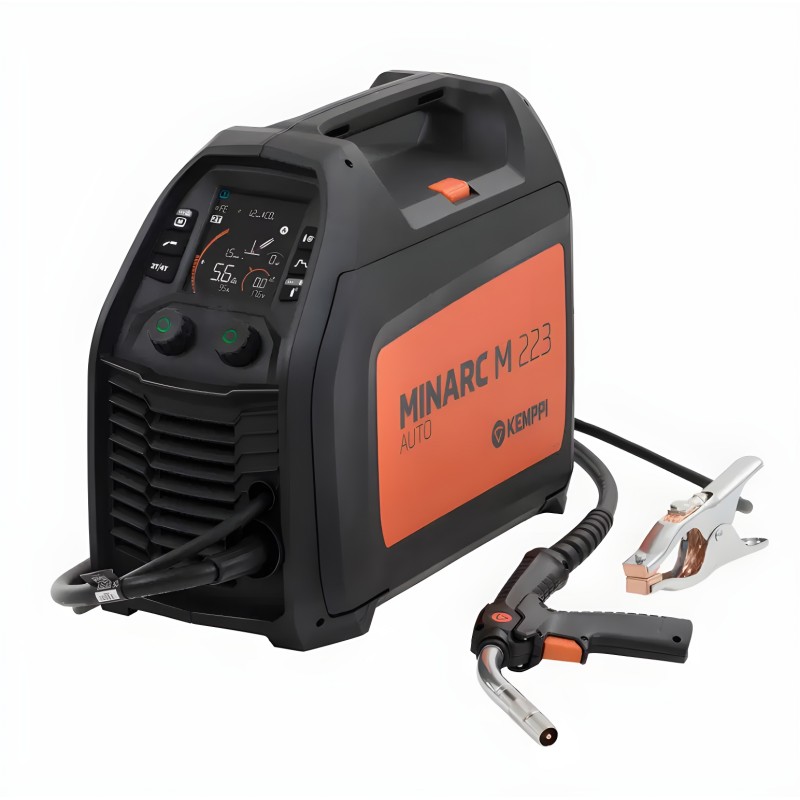

KEMPPI - MINAR MIG M 223 with integrated 3M torch
Reference: MIM223GM
KEMPPI - MINAR MIG M 223 with integrated 3M torch
€2,088.68
€1,879.81
1 540,83 € tax excl.
Supplier stock
Dispatched within 5 to 7 days
KEMPPI - MINAR MIG M 223 with integrated 3M torch
Description
Premium portable MIG/MAG welding machine 110/240 V, delivering 220 A at 20% duty cycle on single-phase power supply, weighing 12 kg. Available with manual and synergic welding options. The welding machine can be used with a generator and features five memory channels. Compatible with many materials, including steel (Fe), stainless steel (Ss), aluminium (Al), CuSi, as well as flux-cored wires and gasless filler wires. The pack includes a welding machine, a gas hose, a drive roller, a shoulder strap, a ground cable, a power cable plug, a gun handle and a welding torch.
Characteristics of KEMPPI - MINAR MIG M 223 with integrated 3M torch
| Supply voltage (in Volts) | 50 / 60 Hz - 230 Volts | Fuse (in Amperes) | 16 A |
| MIG welding adjustment range (in Amperes) | 20 - 220 A | MIG-MAG duty cycle at 40°C | 220 A @ 20 % |
| Uses steel wire diameter | 0.6 to 1.2 mm | Uses stainless steel wire diameter | 0.6 to 1 mm |
| Uses aluminum wire diameter | 0.8 to 1.2 mm | Ventilated | Yes |
| Nature of materials to be MMA welded | steel - stainless steel - aluminum - ferrous metals | Warranty | 3 years |
| Dimensions (in mm) | 460 x 221 x 365 | Weight in kg | 12 |
| Suggested generator power | 8kW - 10kVA | Usage | Professional, Industry |
| Uses spools of diameter | Ø200mm | Synergy | Yes |
