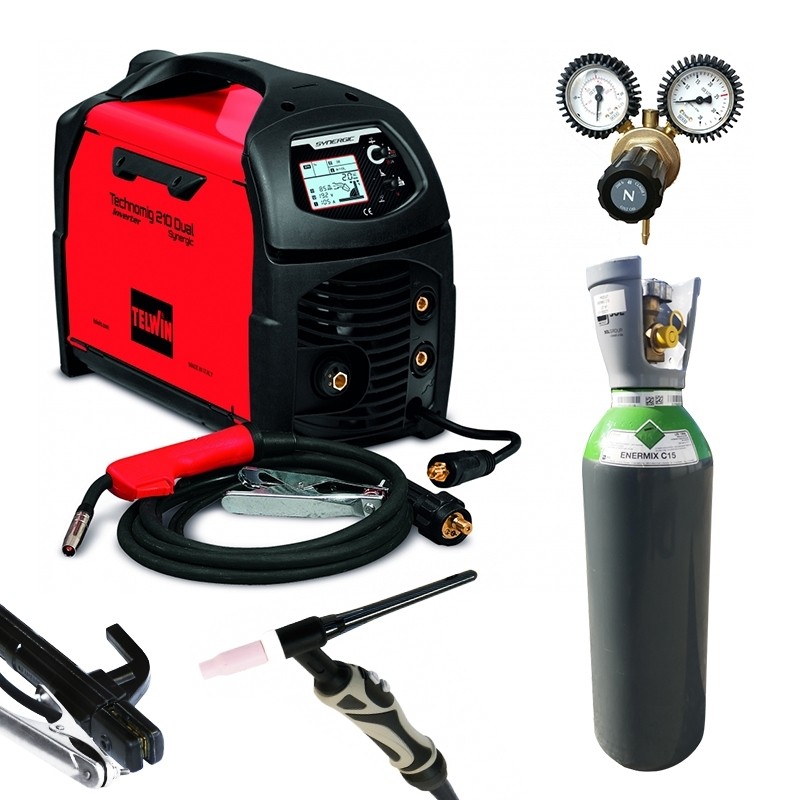

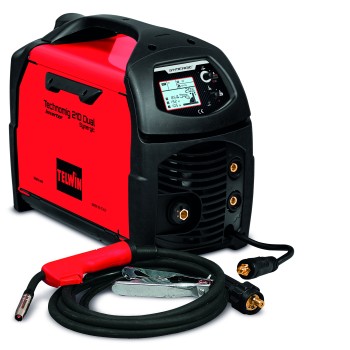

Characteristics of PACK: Telwin Dual 210 welding machine + Regulator + Gas
| Supply voltage (in Volts) |
50 / 60 Hz - 230 Volts |
Fuse (in Amperes) |
16 A |
| MMA power range (in Amperes) |
20 - 200 A |
MIG welding adjustment range (in Amperes) |
20 - 200 A |
| TIG welding adjustment range (in Amperes) |
20 - 200 A |
Duty cycle at 40°C MMA |
150A@30% - 100A@60% - 80A @100% |
| MIG-MAG duty cycle at 40°C |
180A@20% - 100a@60% -80A@100A |
TIG 40° DC duty cycle |
150A@30% - 100A@60% - 80A@100% |
| Installation power (in KW) |
3,5 |
Open circuit voltage (in Volts) |
78 |
| Possible electrode type |
Rutile - basic |
Usable rutile electrode diameter (Ø) for the unit (in mm) |
From 1.6 to 3.2 mm |
| Usable Tungsten electrode diameter (Ø) |
1 to 2.4 mm |
Nature of materials to be TIG welded |
steel, stainless steel, copper, cast iron, titanium, nickel |
| Uses spools of diameter |
Ø100 and Ø200mm |
Uses steel wire diameter |
0.6 to 1 mm |
| Uses stainless steel wire diameter |
0.8 - 1 mm |
Uses aluminum wire diameter |
0.8 to 1 mm |
| Uses flux-cored wire (gasless) diameter |
0.6 mm-0.8 mm - 0.9 mm - 1.2 mm |
Uses CuSi3 - CuAL (Brazing) wire diameter |
0.8 - 1 mm |
| Ventilated |
Yes |
Overvoltage thermostatic protection |
Yes +/- 10 % |
| Nature of materials to be MMA welded |
Steel - Stainless steel - Cast iron |
Welding process |
MMA - MIG - TIG |
| Warranty |
2 years |
Dimensions (in mm) |
460 X 240 360 |
| Weight in kg |
13 |
Number of drive rolls |
2 rollers |
| Suggested generator power |
10 kW - 12 kVA |
|
|
