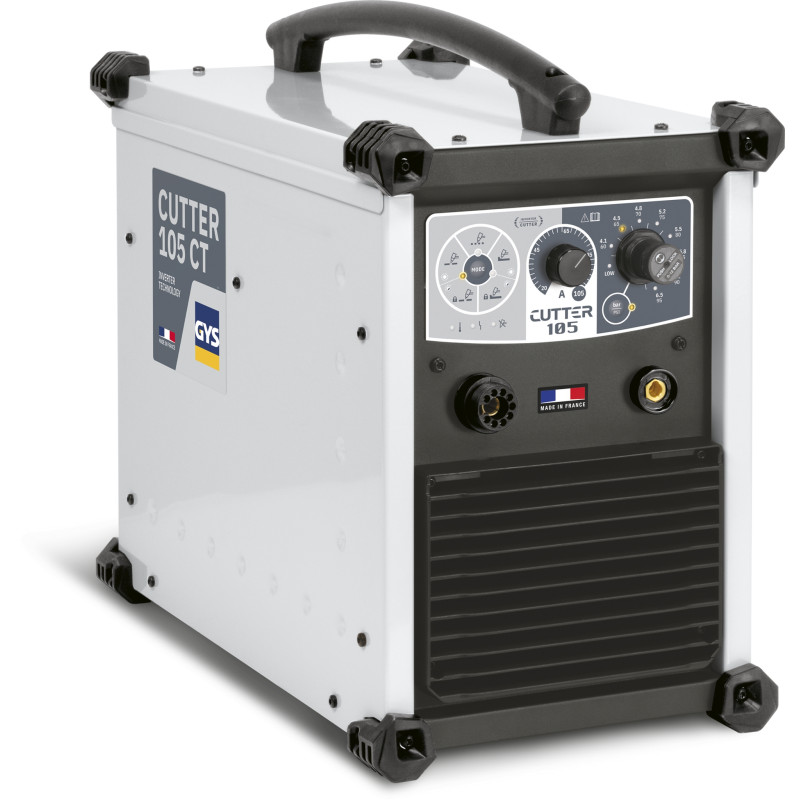

CUTTER 105 CT

The CUTTER 105 CT is a high-performance plasma cutter, lightweight (29 kg) and powerful (105 A), designed for intensive use in the workshop and on site. It offers a cutting capacity of up to 50 mm thickness on steel and features 5 operating modes: cutting solid sheets, perforated sheets, and gouging.

Key performance

• High duty cycle: 105 A at 60%, for maximum productivity.

• Cuts all types of metals (mild steel, stainless steel, hardened steel, HLE, aluminum, copper).

• Concentrated arc for a clean cut with minimal slag.

Suitable for harsh environments

• Optimized cooling with electronic dust protection.

• Reinforced housing, anti-shock pads, IP23 protection for outdoor use.

• Compatible with generator (30 kW recommended).

• Transportable by a single person.

Ease of use

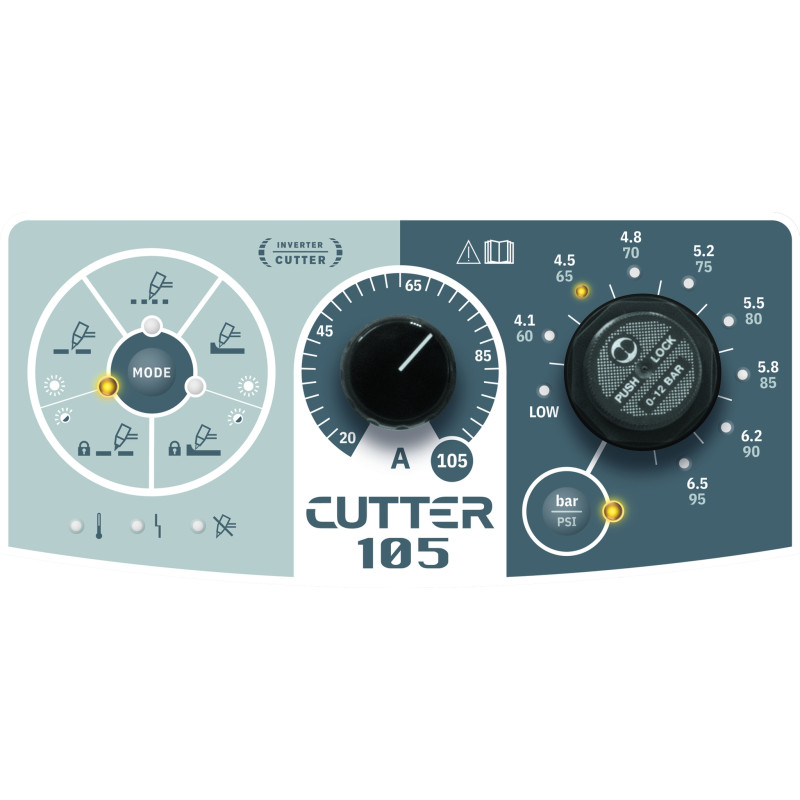

• 5 cutting modes with locked trigger options.

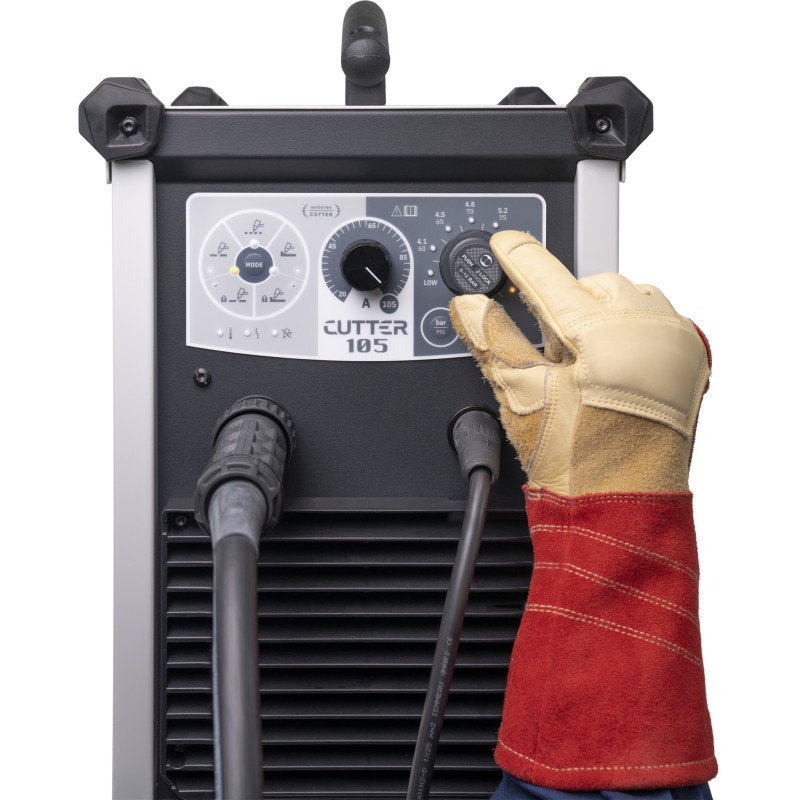

• Manual air pressure adjustment with front panel indicator.

• Air filter with automatic purge to protect the torch.

• HF-free ignition, avoiding electronic interference.

• Integrated compartment for consumables.

• Optional analog CNC kit for cutting tables.

• Simple software update via USB-B port.

Premium torch

• Compatible with many torch models (different lengths, angles, etc.).

• Wide range of consumables suitable for all thicknesses.

• Designed to withstand shocks and heat.

• Quick connect/disconnect without tools, making transport and maintenance easier.

• Safety mechanism on the trigger to prevent accidental arc activation.

The Cutmaster 50+ plasma cutter is the ideal combination of power and portability for portable plasma cutting machines.
Portable and durable with its three handles and a lightweight, industrial, weather-resistant enclosure. The bright 10.9 cm (4.3-inch) TFT LCD screen with a glove-compatible adjustment knob simplifies use and allows for increased control and flexibility.

High-performance plasma cutting.

The Lincoln Electric Tomahawk plasma cutting system focuses on three elements:

• S (Starting) - An innovative and patented starting system that preserves and extends electrode service life.
• P (Performance) - Thanks to a very high-speed helical airflow combined with a special electrode and nozzles designed to concentrate the plasma flow.
• L (Lifetime) - The optimised airflow cools the electrode and nozzle for extended service life.

• Performance - Innovative electrode and cutting nozzle design.
• Service life - The innovative design increases consumable lifespan.
• Flexible - Numerous torch configurations.
• Concentrated plasma flow - Low heat input, less distortion.
• Cutting of various metals – Unalloyed steel, stainless steel, aluminium and others.

Main Features

• advanced arc starting technology, without High Frequency (HF)
• innovative electrode and nozzles
• Extended consumable lifespan
• Reduced heat input, less distortion
• Numerous torch configurations

 Clean cut thickness 25 mm.
Separation cut thickness 30 mm.

Included accessories:
Power cable (3 m)
Manual torch LC 65 (7.5 m)
Cable and ground clamp set (6 m)
Air connection kit
Torch consumable parts kit

Your compressor must have an airflow of 130 litres per minute at a pressure of 5 bar for the proper operation of this cutter.

Inverter technology plasma cutter with contact pilot arc ignition.
Enables fast cutting without distortion, cutting through grating, and gouging of all conductive materials, such as steel, stainless steel, galvanized steel, aluminium, copper, or brass for example.

Easy-to-read digital display.
High cutting current stability.
Thermostatic protection against overvoltage and undervoltage, short circuits in the torch or absence of phase and air.
Cutting thickness: 20 - 30 mm depending on materials.
Adjustment range from 20 to 70 A

Options:
1) Interface with automated cutting table
2) Remote control

Requires connection to a compressor delivering 200 l/min of air at a pressure of 4 - 5 bar.

Supplied with:
1 Tecmo torch 6 m long fitted with a 70 A nozzle + 1 spare 70 A nozzle.
1 ground clamp + cable 25 mm² cross-section, 5 m long

The Gys CUTTER 70 CT plasma cutter has a cutting capacity of 35 mm thickness on steel and 25 mm on aluminium in separation.
Suited to industrial environments, it is highly effective on solid sheets, mesh or painted structures.

Cutting speed superior to oxy-fuel.
Cuts all steels (mild, stainless, hardened, HLE), aluminium, copper, etc.
Optimised unit cooling thanks to the ventilation channel that isolates electronic components from dust.
Easy and fast consumable installation for maximum efficiency.

Premium TECMO® torch (leading supplier in Europe).
Superior cut quality: air-cooled torch body offering excellent arc stability at various operating levels.
Hypertherm®-compatible consumables.
Designed to withstand shocks and heat.
Quick torch connection/disconnection without tools, facilitating transport and maintenance.
Easy-to-use trigger mechanism for greater comfort.

Intuitive control panel: - 3 working modes: solid sheet / perforated sheet / lock -
manual air pressure adjustment (4.1 < 6.5 bar) with front bargraph.
HF-free ignition to avoid interference that could damage nearby electronic equipment.
Compatible with CNC kit for automated cutting table.

Gouging with maximum removal - Enables significant metal elimination (Pad and Nozzle specific options available)

Reinforced casing & non-slip feet.

Supplied with: one earth clamp + cable 4 m long - 10 mm² cross-section

This plasma cutter requires connection to a compressed air source with a flow rate of 185 L / minute.

The Gys CUTTER 70 CT plasma cutter has a cutting capacity of 35 mm thickness on steel and 25 mm on aluminium in separation mode.
Suited to industrial environments, it is highly effective on solid sheets, mesh sheets or painted structures.

Cutting speed superior to oxy-fuel.
Cuts all steels (mild, stainless, hardened, HLE), aluminium, copper, etc.
Optimised machine cooling thanks to the ventilation channel isolating electronic components from dust.
Easy and quick consumable installation for maximum efficiency.

Premium TECMO® torch (leading supplier in Europe).
Superior cut quality: air-cooled torch body providing high arc stability at various operating levels.
Hypertherm®-compatible consumables.
Designed to withstand shocks and heat.
Quick torch connection/disconnection, no tools required, facilitating transport and maintenance.
Easy-to-use trigger mechanism for greater comfort.

Intuitive control panel: - 3 working modes: solid sheet / perforated sheet / lock -
manual air pressure adjustment (4.1 < 6.5 bar) with front panel bargraph.
HF-free ignition to avoid interference that could damage nearby electronic equipment.
Compatible with CNC kit for automated cutting table.

Gouging with maximum removal - Allows significant metal removal (Skid and Nozzle specific options available)

Reinforced casing & anti-slip feet.

Supplied with an MT-70 torch 6 m long and an earth clamp + cable 4 m long - 10 mm² section

This plasma cutter requires connection to a compressed air supply with a flow rate of 185 L/minute.

Inverter plasma cutter with contact pilot arc ignition.
Enables fast, distortion-free cutting, cutting on mesh and gouging of all conductive materials, such as steel, stainless steel, galvanised steel, aluminium, copper, or brass for example.

Easy-to-read digital display.
High cutting current stability.
Thermostatic protections for over-voltage and under-voltage, short circuits in the torch or absence of phase and air.
Cutting thickness: 20–30 mm depending on materials.
Adjustment range: 20 to 70 A

Options:
1) Interface with automated cutting table
2) Remote control

Requires connection to a compressor delivering 200 l/min of air at a pressure of 4–5 bar.

Supplied with:

The Cutmaster 70+ plasma cutter is the ideal combination of power and portability for portable plasma cutting machines. Portable and durable with its three handles and a lightweight, industrial, weather-resistant enclosure. The bright 10.9 cm (4.3-inch) TFT LCD screen with a glove-compatible adjustment knob simplifies use and allows for increased control and flexibility.

High-performance plasma cutting.

The Lincoln Electric Tomahawk plasma cutting system focuses on three elements:

• S (Starting) - An innovative and patented arc starting system that preserves and extends electrode service life.
• P (Performance) - Thanks to a very high-speed helical airflow combined with a special electrode and nozzles designed to concentrate the plasma flow.
• L (Lifetime) - The optimized airflow cools the electrode and nozzle for extended service life.

• Performance - Innovative cutting electrode and nozzle design.
• Service life - The innovative design increases consumable service life.
• Flexible - Multiple torch configurations.
• Concentrated plasma flow - Low heat input, less distortion.
• Cutting of different metals – Mild steel, stainless steel, aluminum and others.

Main Specifications

• advanced arc starting technology, without High Frequency (HF)
• innovative electrode and nozzles
• Improved consumable service life
• Reduced heat input, less distortion
• Multiple torch configurations

 Clean cut thickness 40 mm.
Severance cut thickness 45 mm.

Included accessories:
Power cable (3 m)
LC 105 manual torch (7.5 m)
Ground cable and clamp set (6 m)
Air connection kit
Torch consumables parts kit

Your compressor must provide an airflow of 180 liters per minute at a pressure of 5 bar for proper operation of this cutter.
